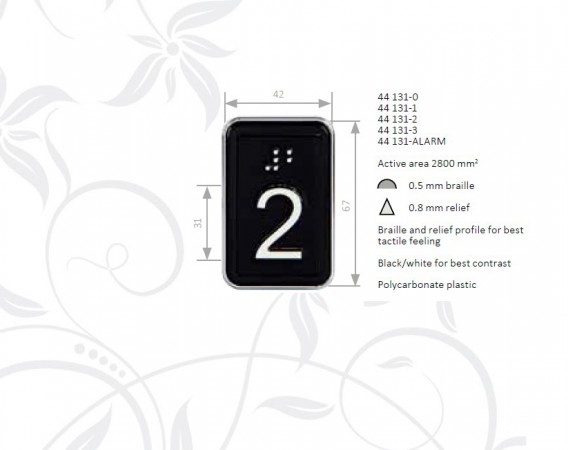

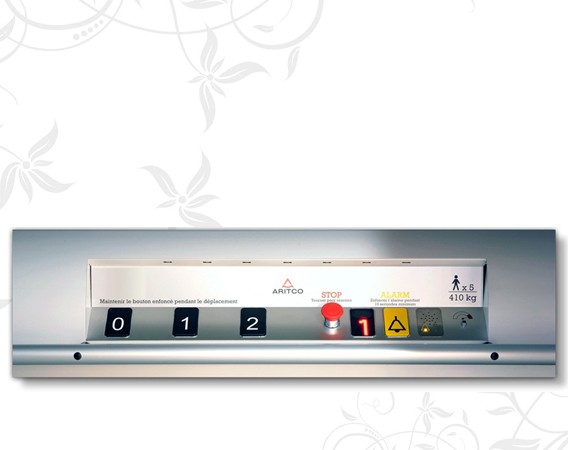

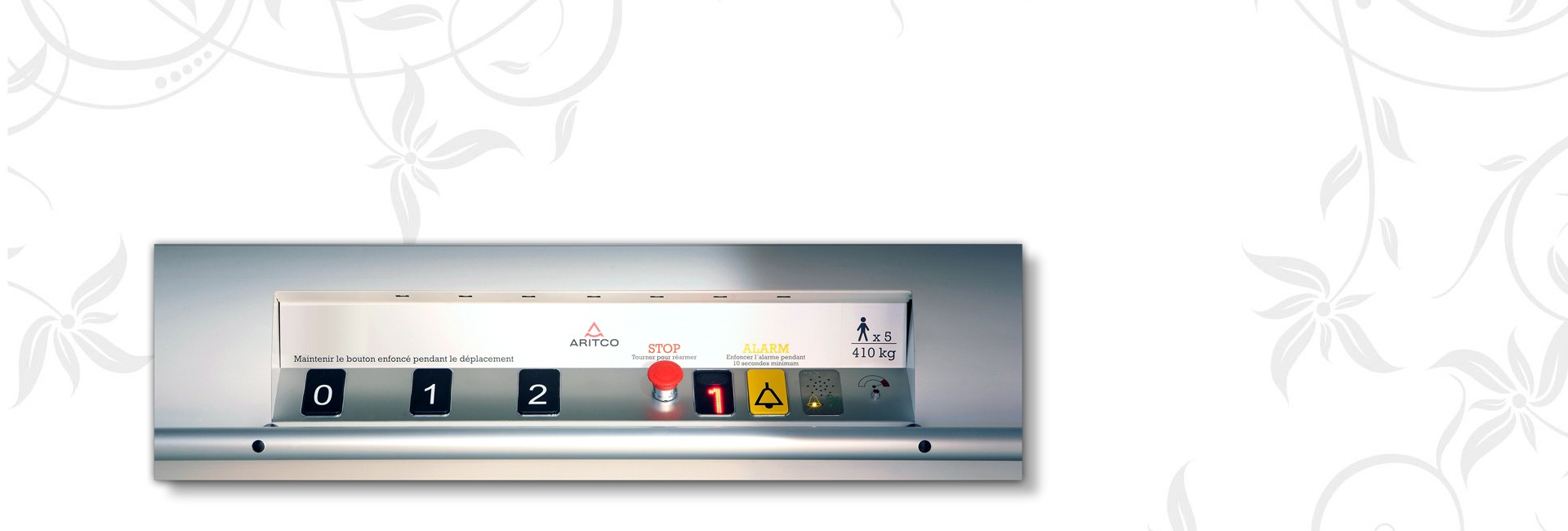

Destination buttons are according to EN 81-41 and EN81-70 for disabled. The location of the buttons are within the limits in the standard, i.e. height between platform floor and the center line of the buttons is between 900-1100 mm.



Standard buttons are engraved with braille. The buttons are of polycarbonate plastic. Following buttons are available: -2, -1, 0, 1, 2, 3, 4, 5, 6, B, BG, BV, G, K, KV, P, U, E. Individual special characters can also be ordered as an option. Maximum 2 characters per button. These buttons will also be engraved. If a lift is ordered with any button that is not 0,1, 2, 3 all buttons will be engraved.

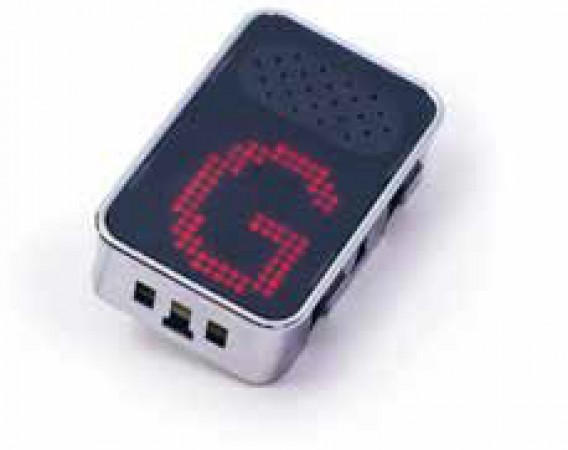

Digital display positioned at the destination panel. It shows which floor the lift is on at the moment. The indicator can also be fitted with a voice announcer available in Danish, Dutch, English, Finnish, French, German, Norwegian, Polish, Russian and Swedish. Voice: Basement, Ground floor, Floor 1-6 The landing indicator can also show information from the system.
• Warning if the batteries are low.
• A bell when the alarm button has been pressed.
• Number of starts and total run time since installation or since last reset.
• A weight symbol will appear if the lift is overloaded.
• If connected to the buildings fire alarm a “Fire” symbol will be shown when alarm is activated. Can be ordered as an option.

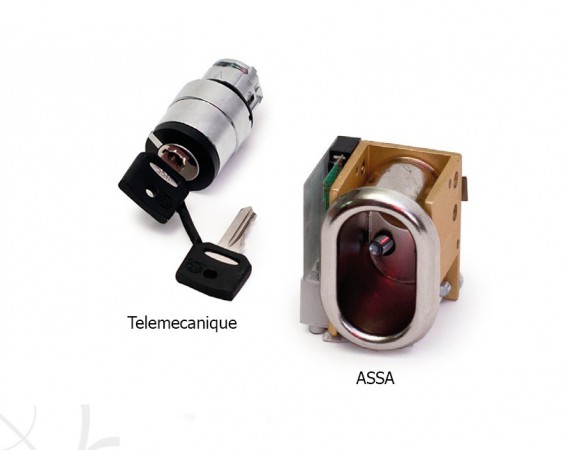

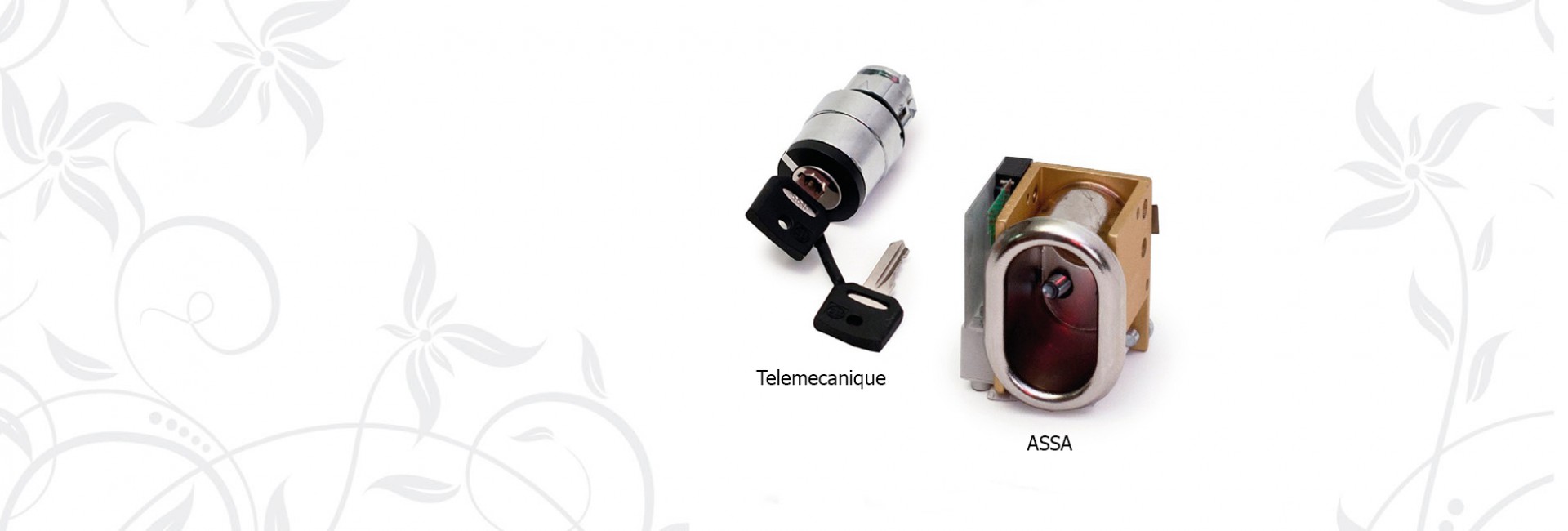

Key switch placed on destination panel. The key switch locks the platform functions and prohibits unauthorized use. One key switch per platform can be provided. The key switch can be serial connected to all destination buttons or the key switch is connected to one destination button. Two brands to choose from:

• ASSA (Nordic markets only). Aritco only delivers the housing, Aritco does not deliver the locking cylinder.
• Telemecanique Can be ordered as option.

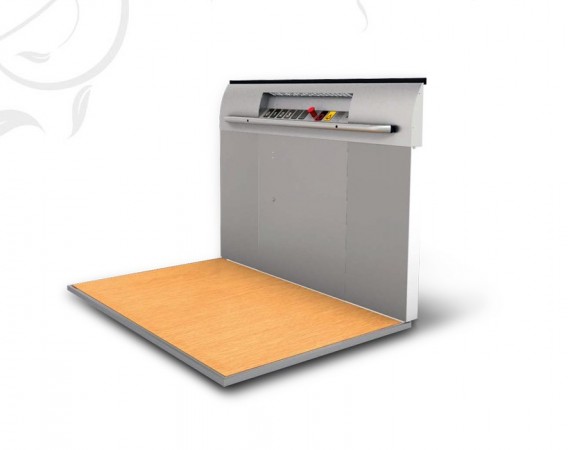

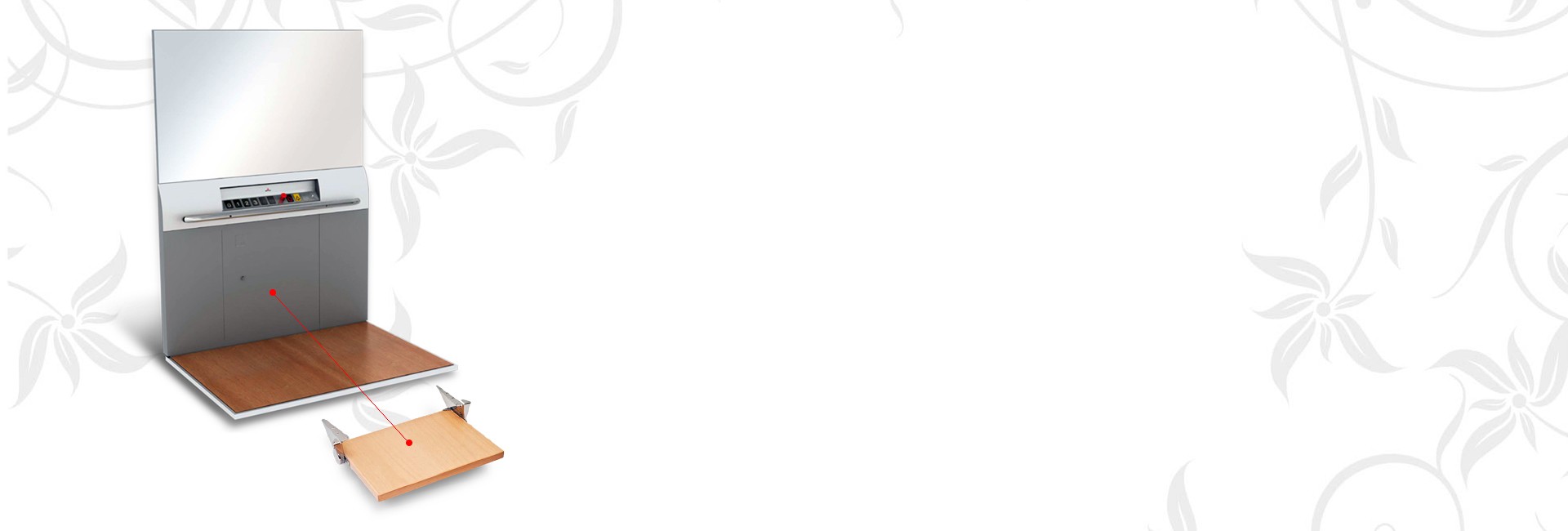

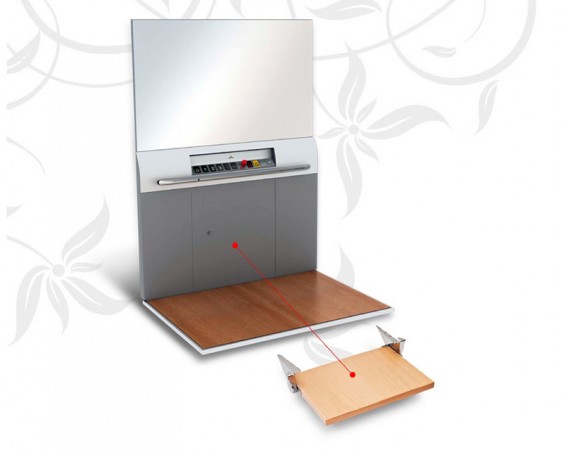

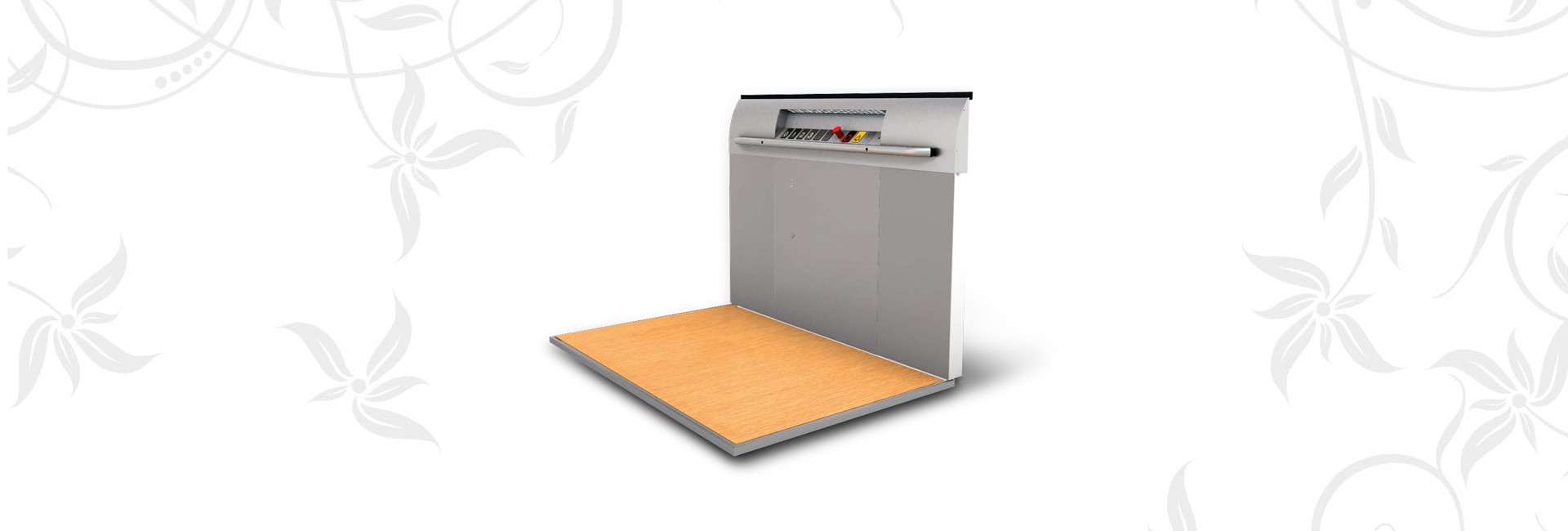

The platform is in its basic execution delivered with a side wall (half height) including the destination panel. Panels under the destination panel are painted in RAL 7042 (grey) as standard, but can be painted in any RAL colour as an option. Height 1100 mm.

A,B,C and D-side of platform.

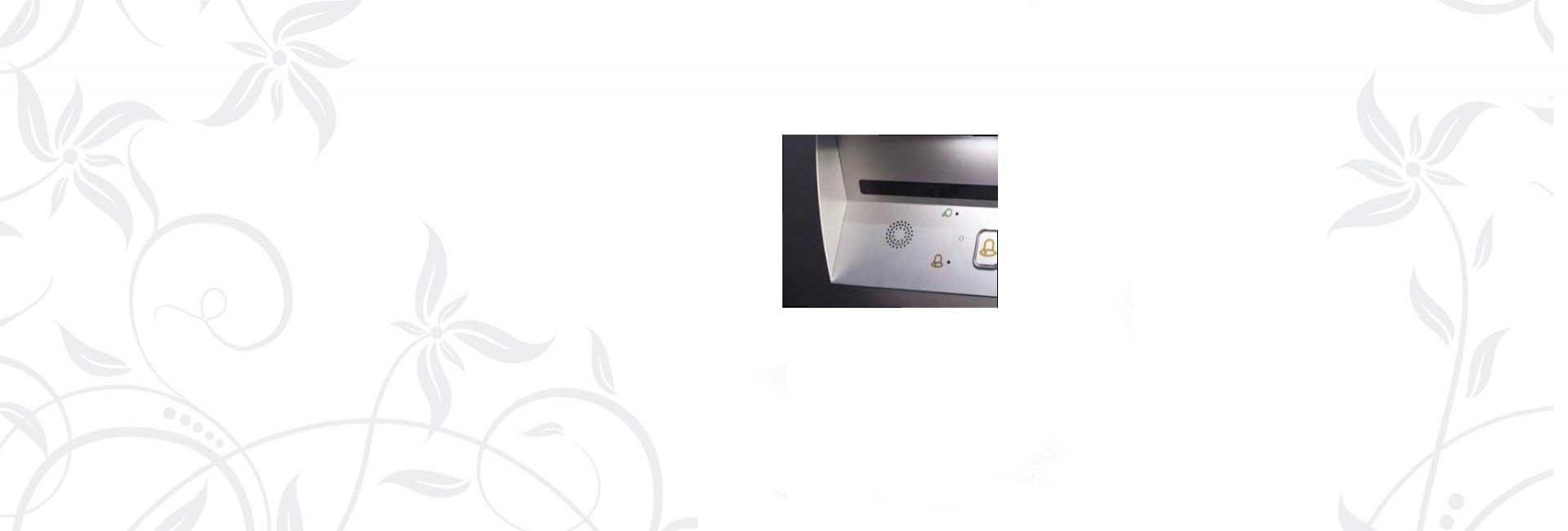

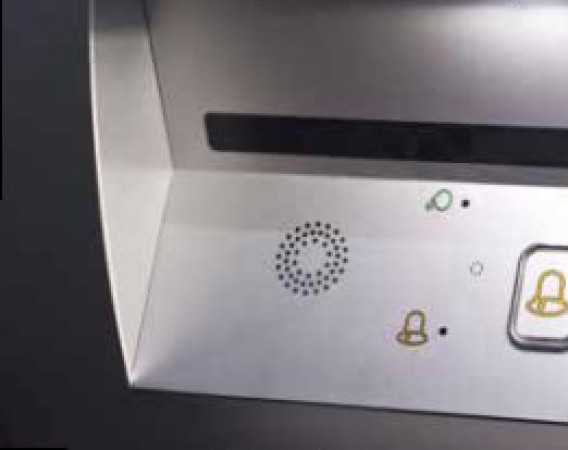

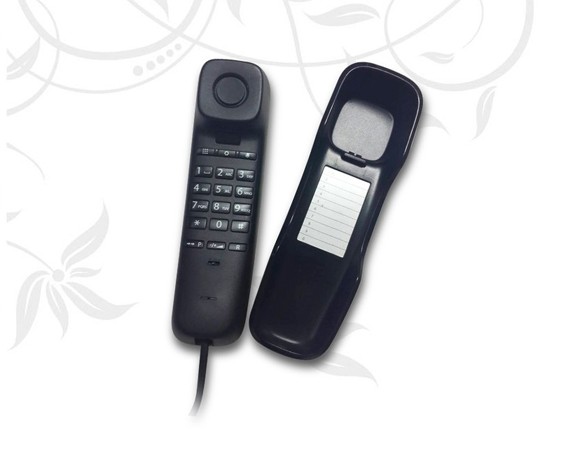

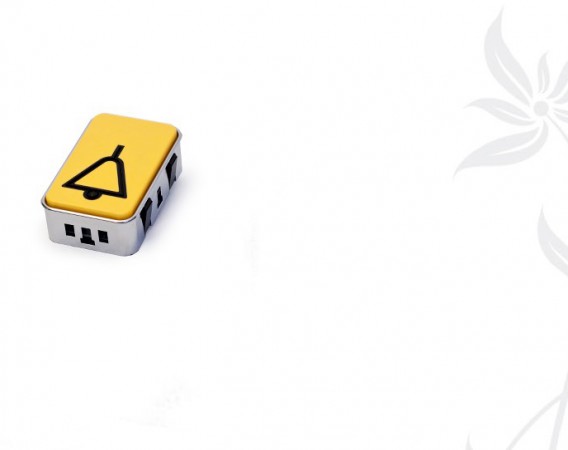

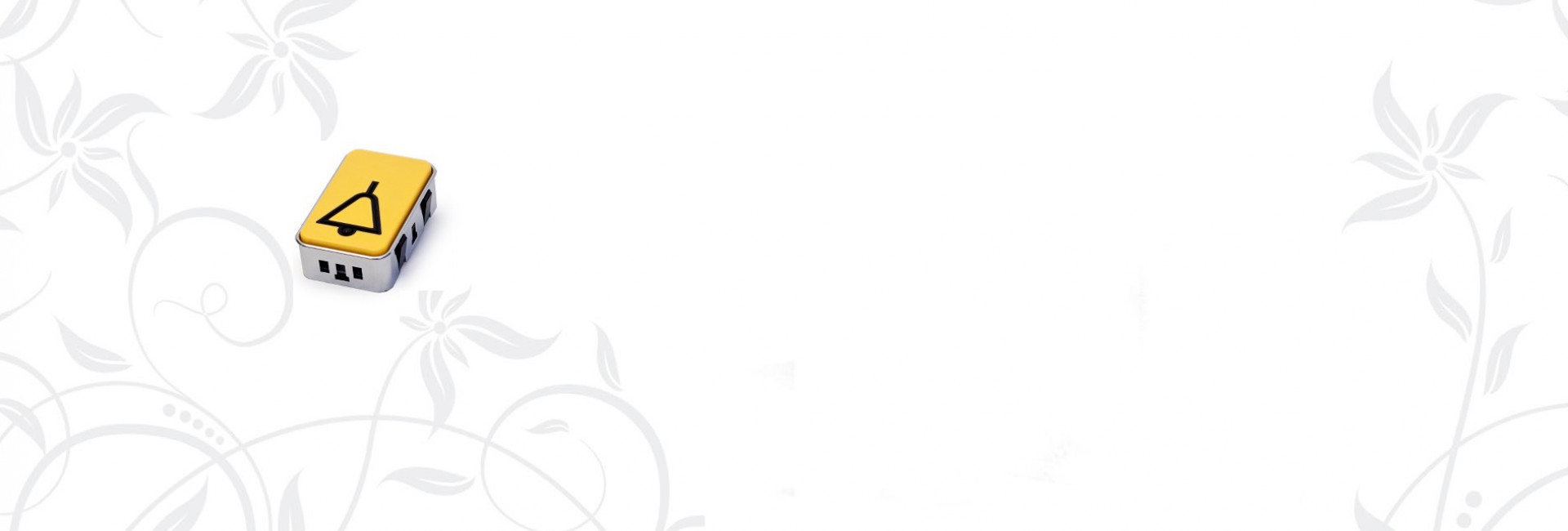

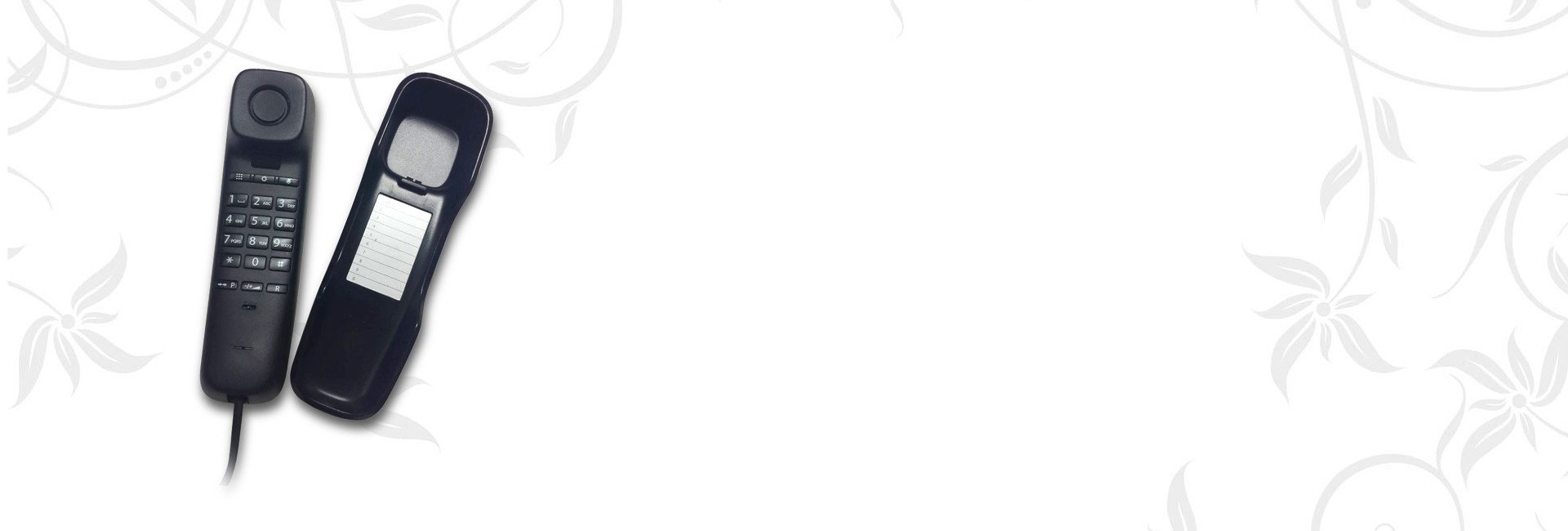

Equipment for emergency calls. Integrated on the destination panel. Dials automatically when the alarm button is pressed. When unanswered after a predefined time, the call is automatically forwarded to the next number. The autodialer can be equipped with a GSM module. Aritco does not supply SIM card.

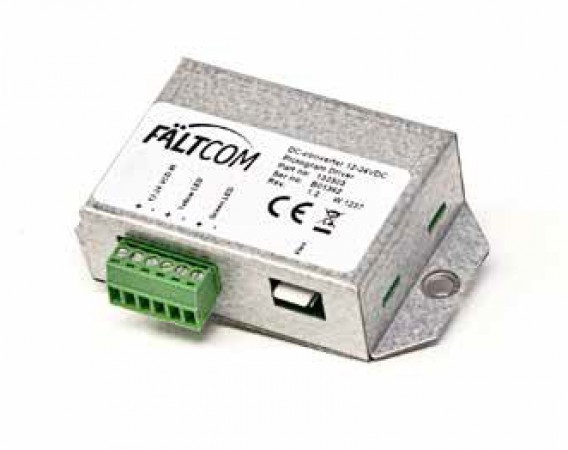

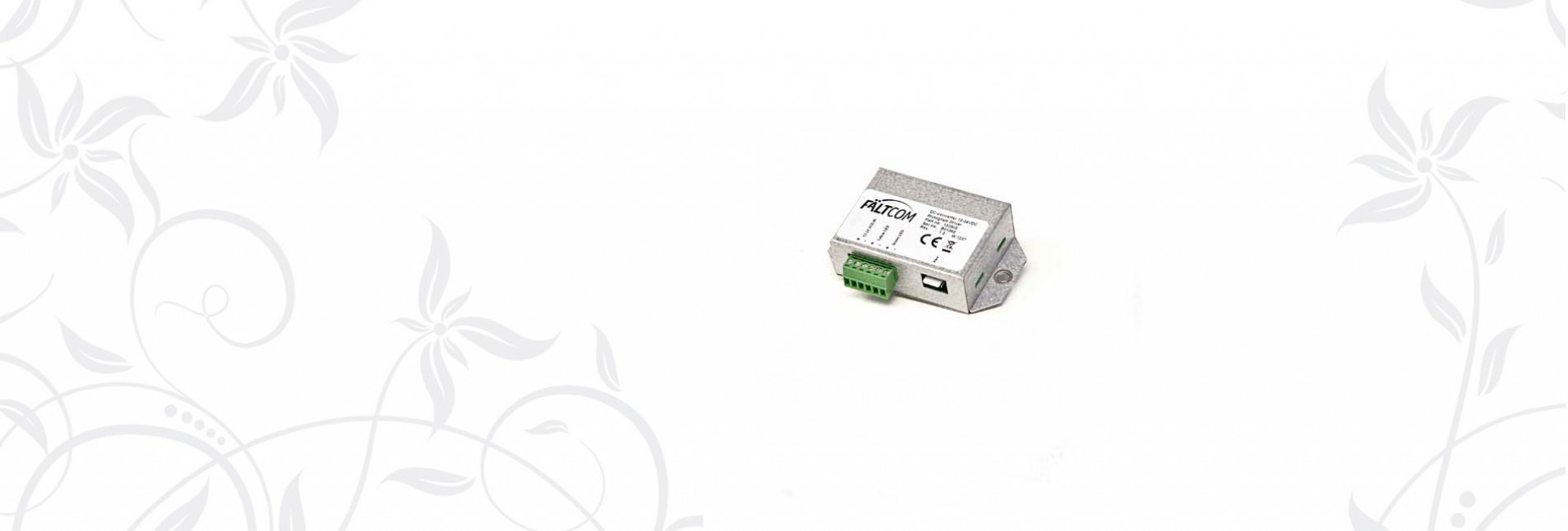

When more autodialers are connected in series on one phone line the power on the phone line is not enough to drive more than one autodialer. In this case, a DC-converter is needed for each lift. The DC-converter 12-24 V is used as external power supply for the autodialer.

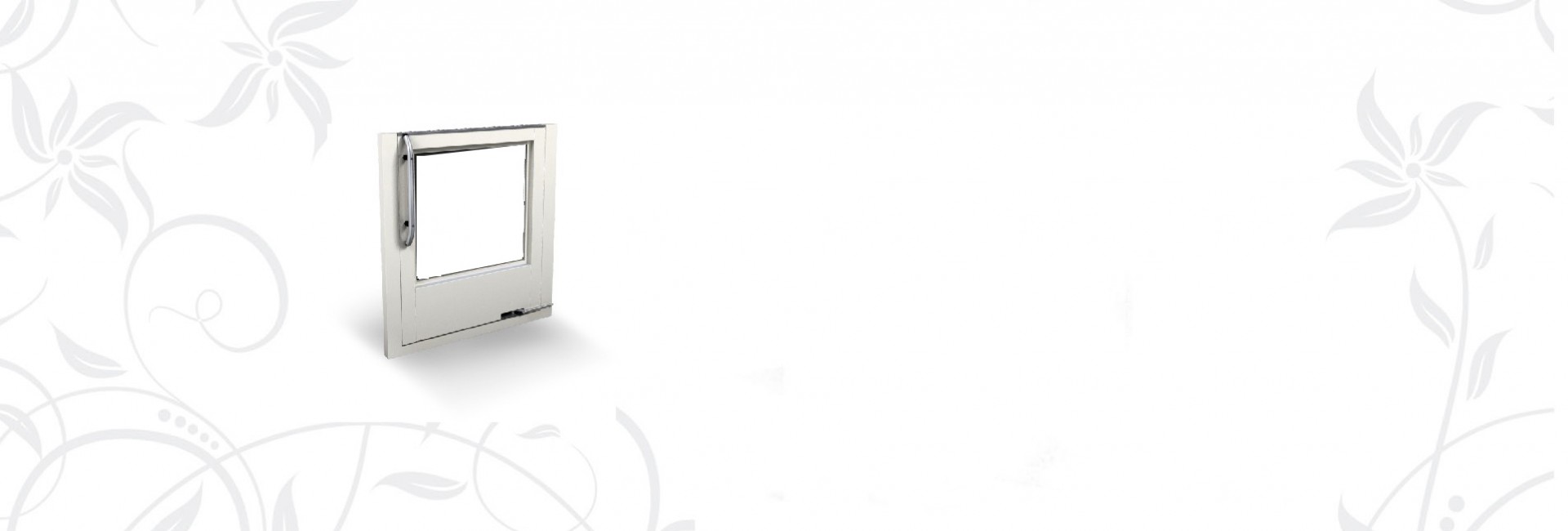

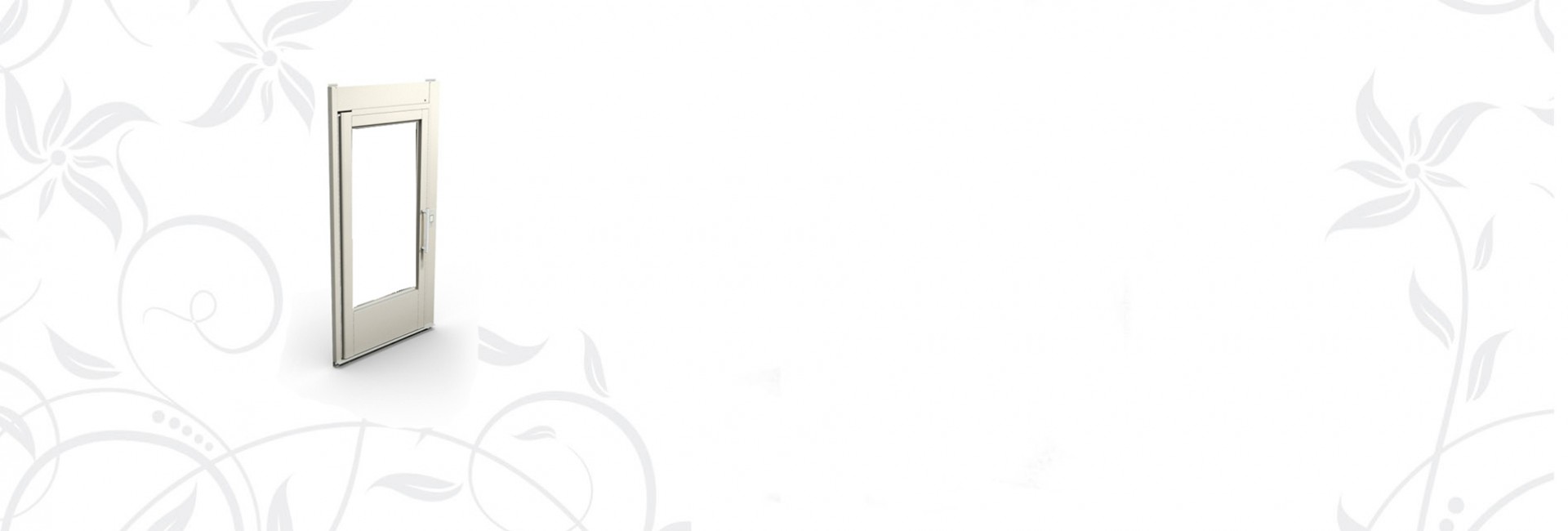

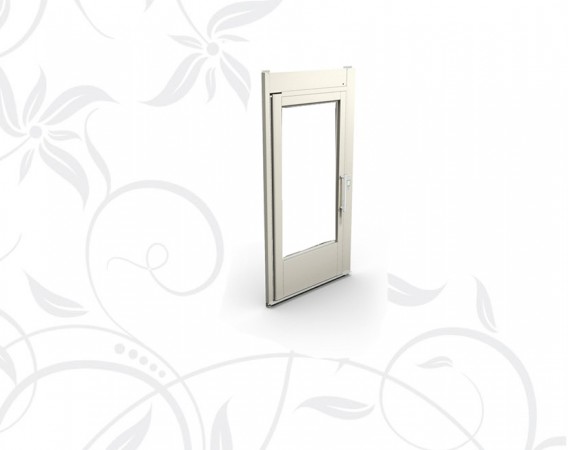

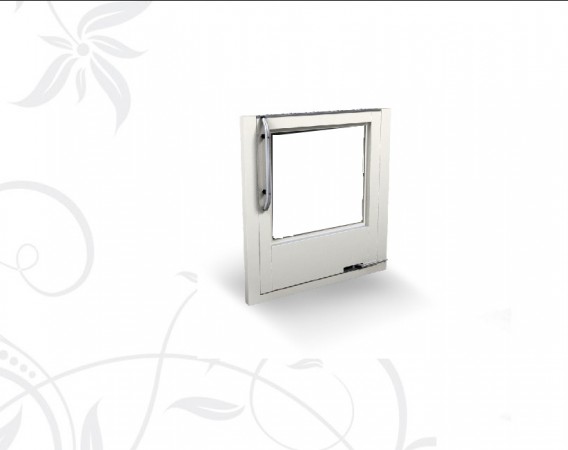

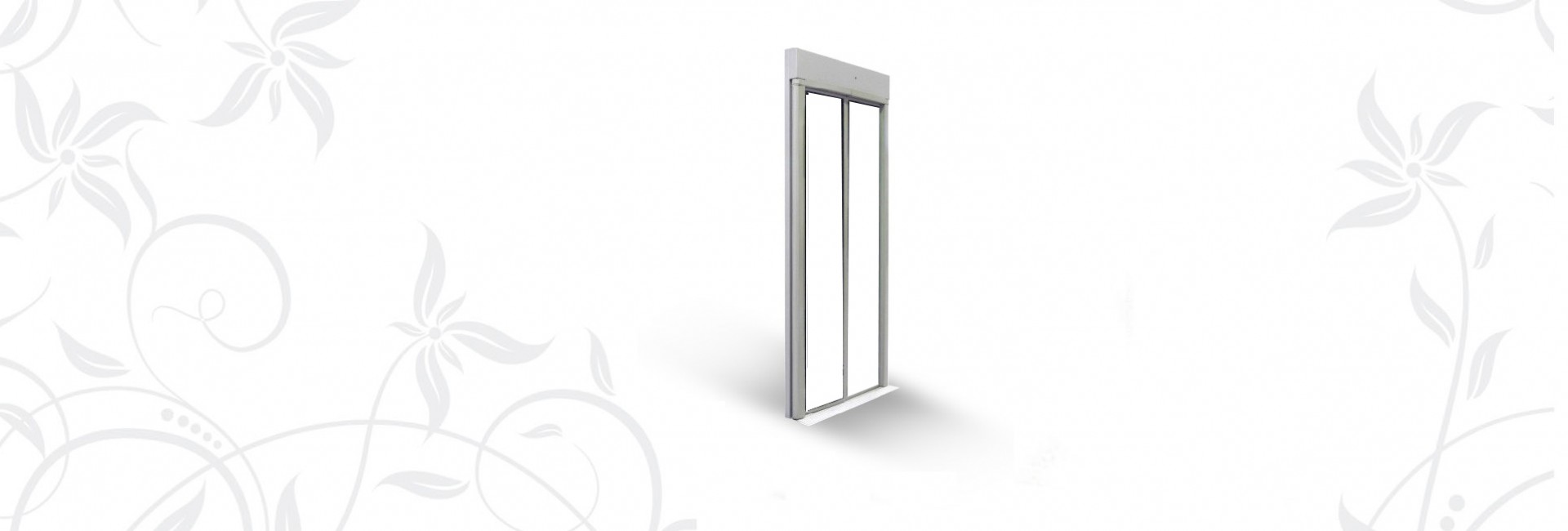

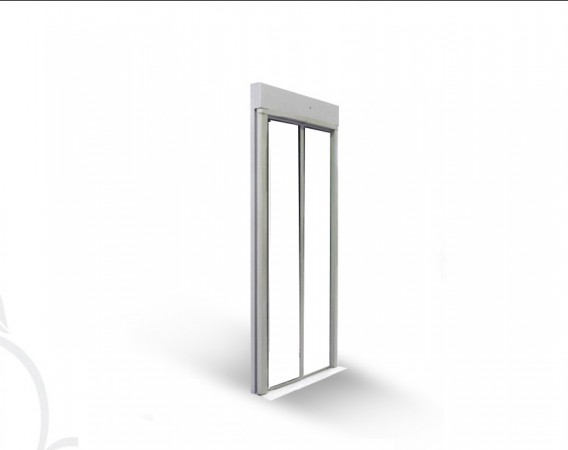

Opening Width and Height needs to be specified
RAL painted
Glass color: Clear, Frosted, Toned or Dark
RAL profiles: Yes, No or White
View: A,B or C
Access floor door: Yes or No
Profiles: Old or New
Series: Prime or Living
Opener and door handle is not included

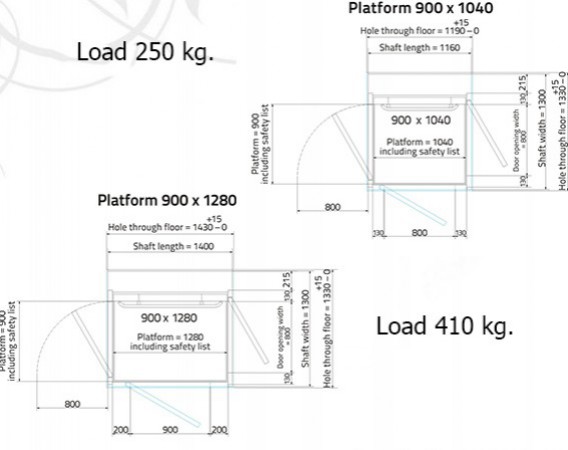

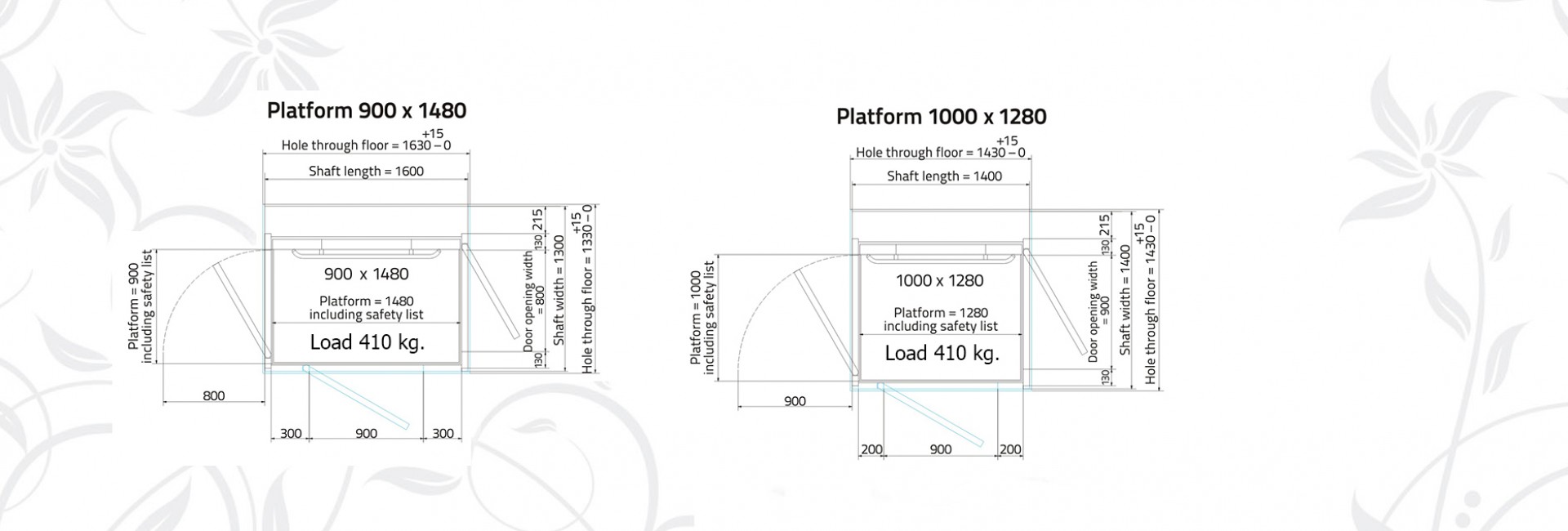

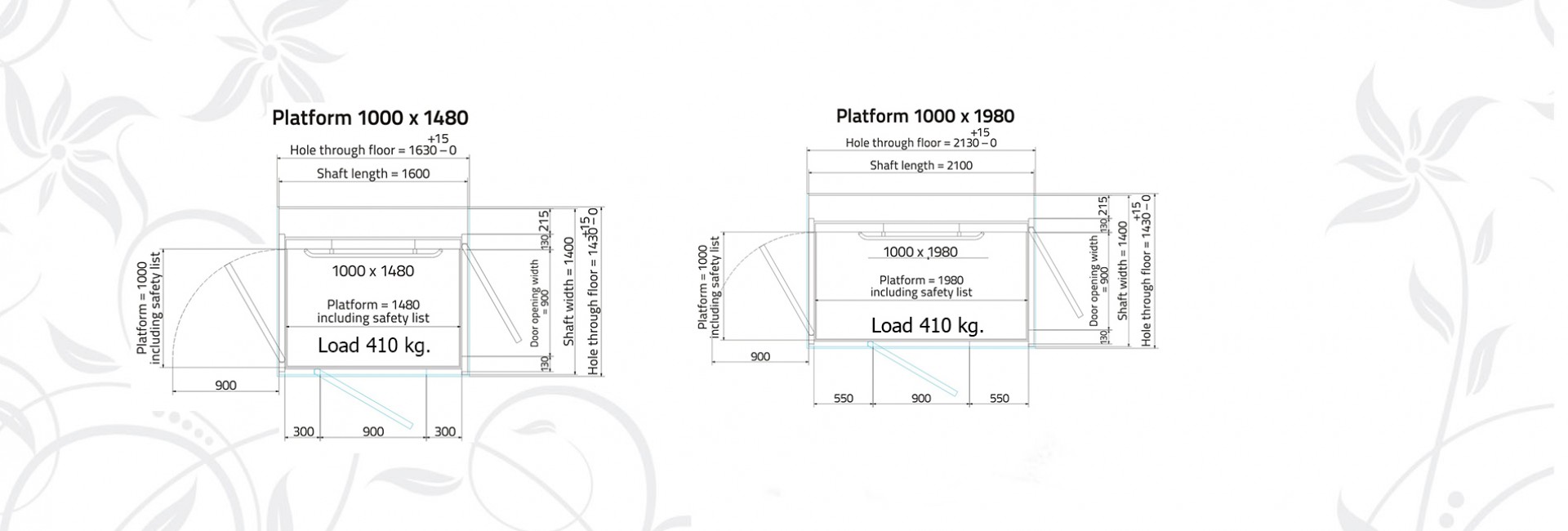

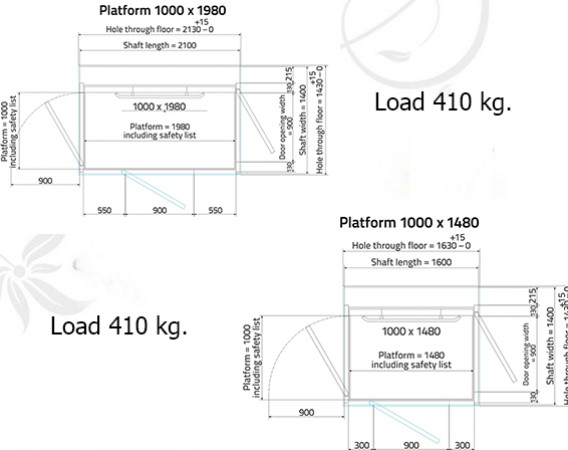

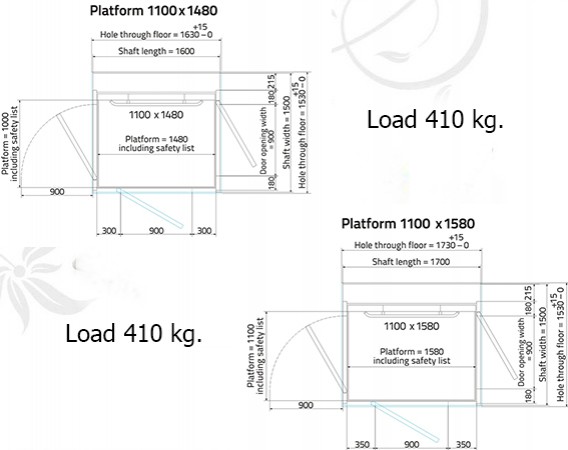

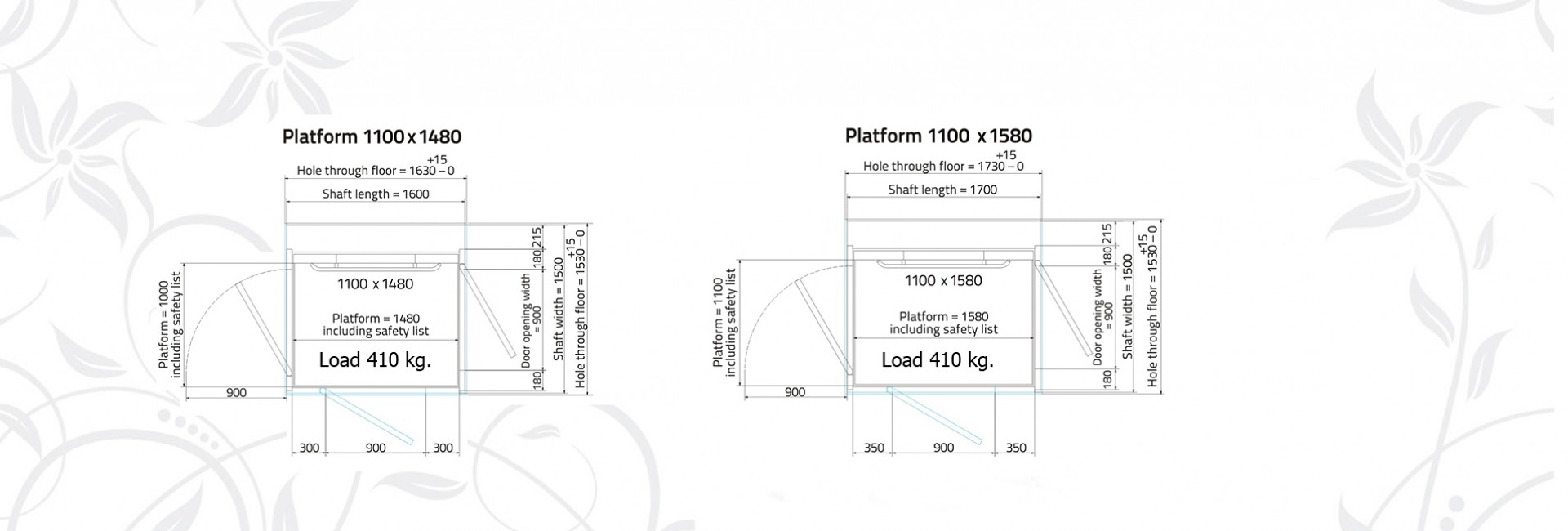

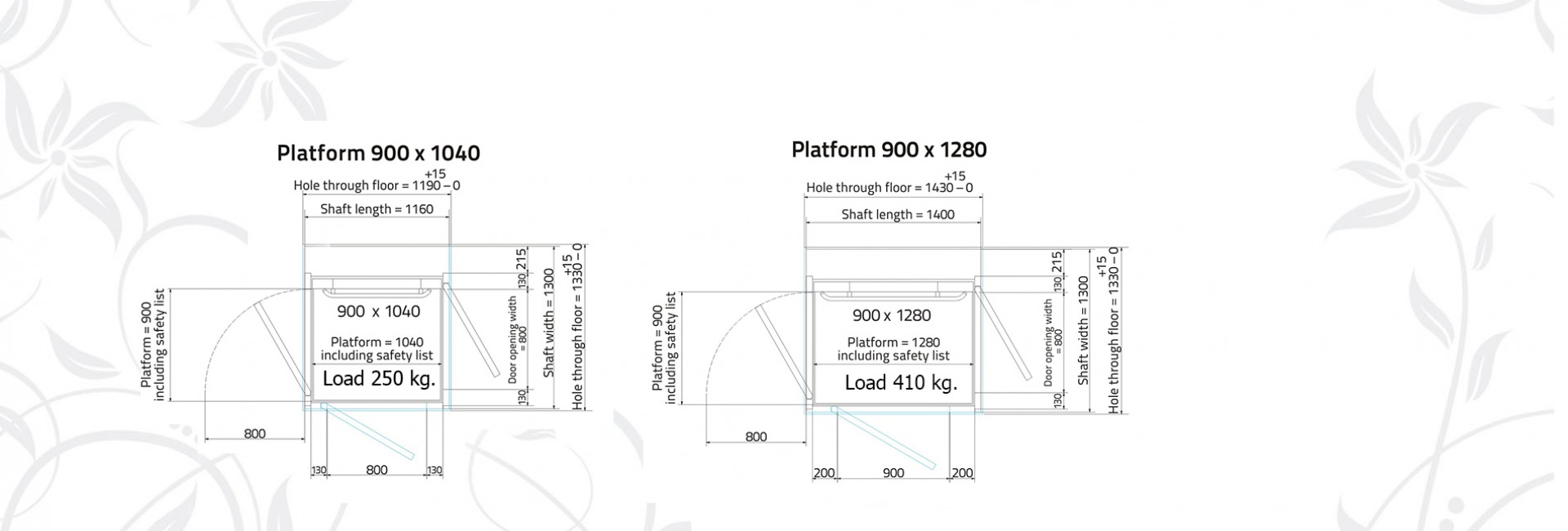

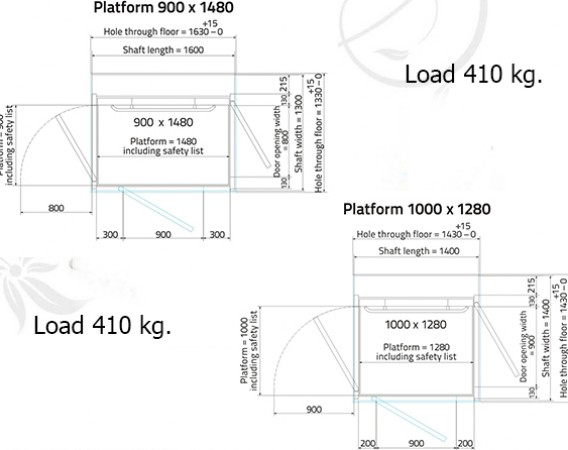

Length of platform: 805, 1280, 1480, 1580 or 1980
Width of plattform: 900, 1000 or1100

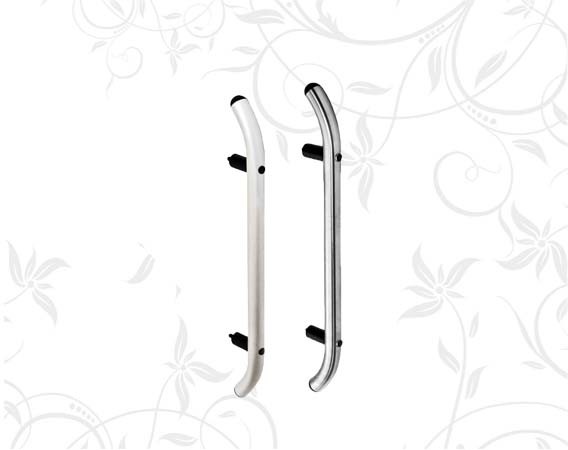

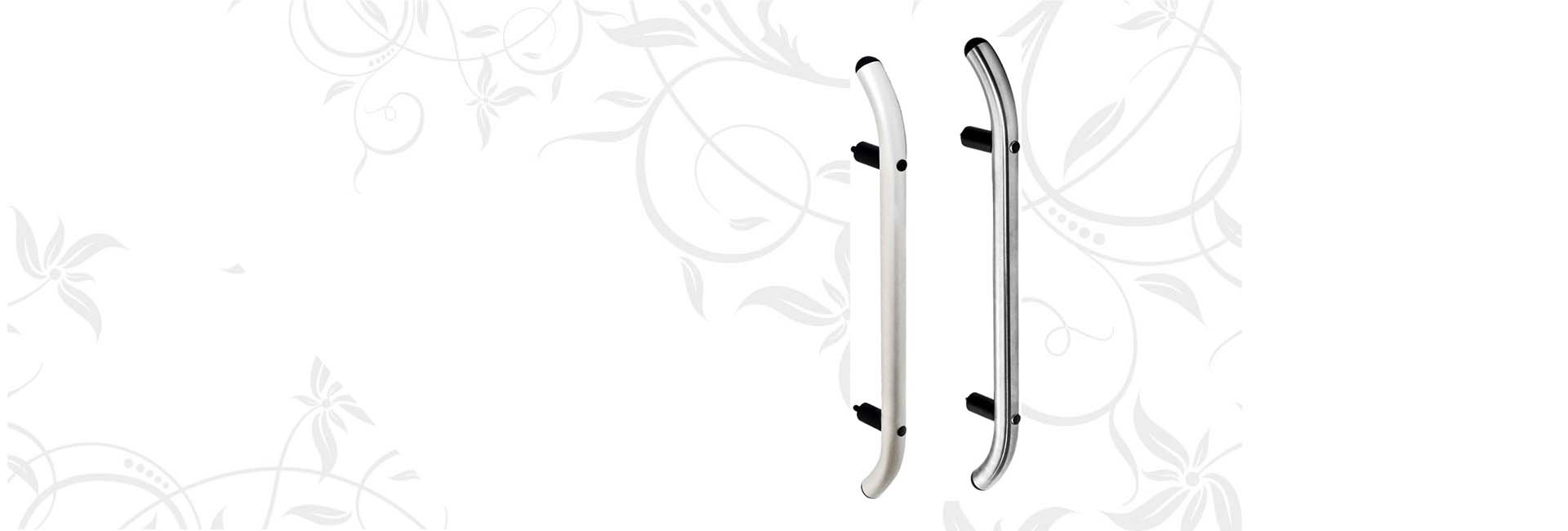

The handle with a diameter of 30 mm is delivered as standard. The end of the handrail are closed and bended as curve.
• Anodized aluminum (standard)
• Stainless steel (option)

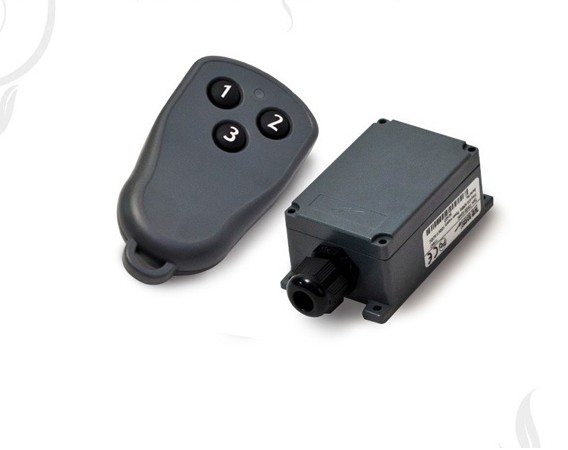

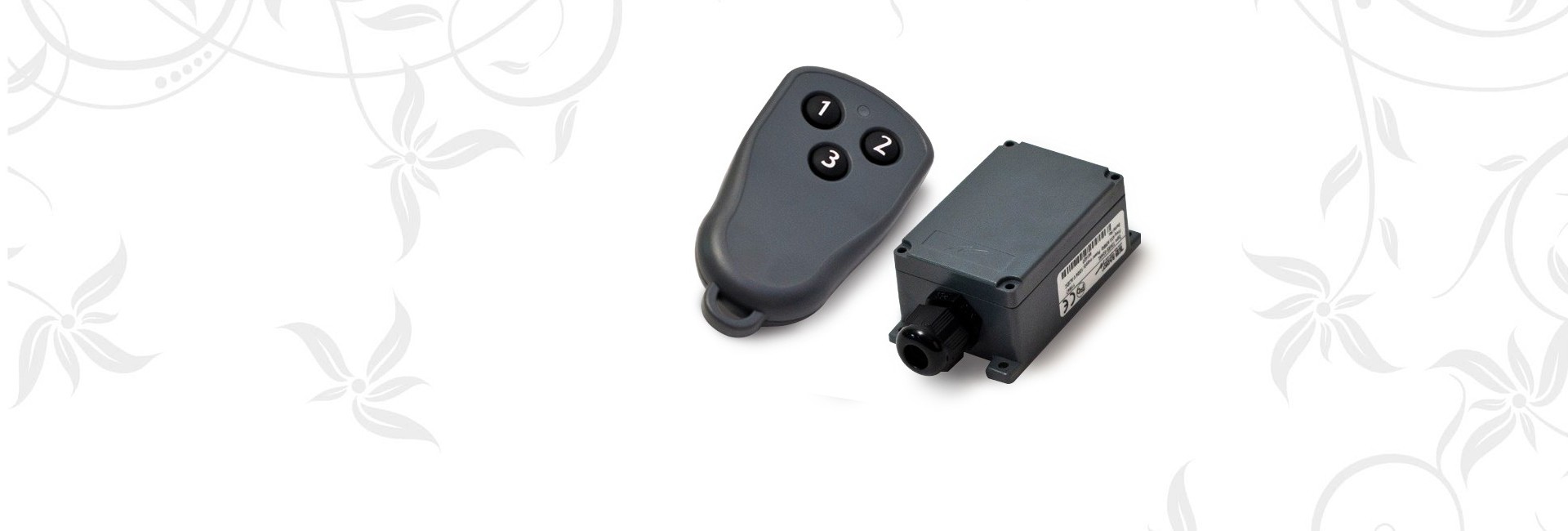

A remote control is connected to the destination buttons on the platform. Instead of pressing the destination button on the platform the button on the remote control can be pressed (hold to run). Remote control with 2 to 6 buttons, with numbers 2-6. One remote control per lift. One receiver per two floors. Can be ordered as an option.

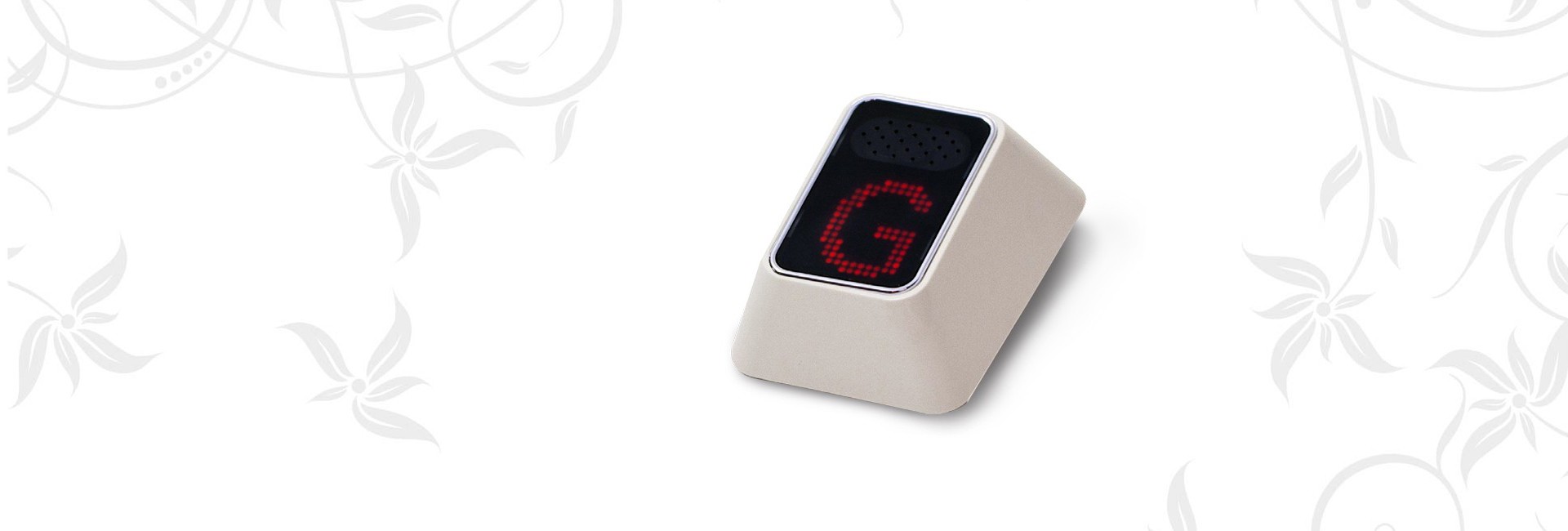

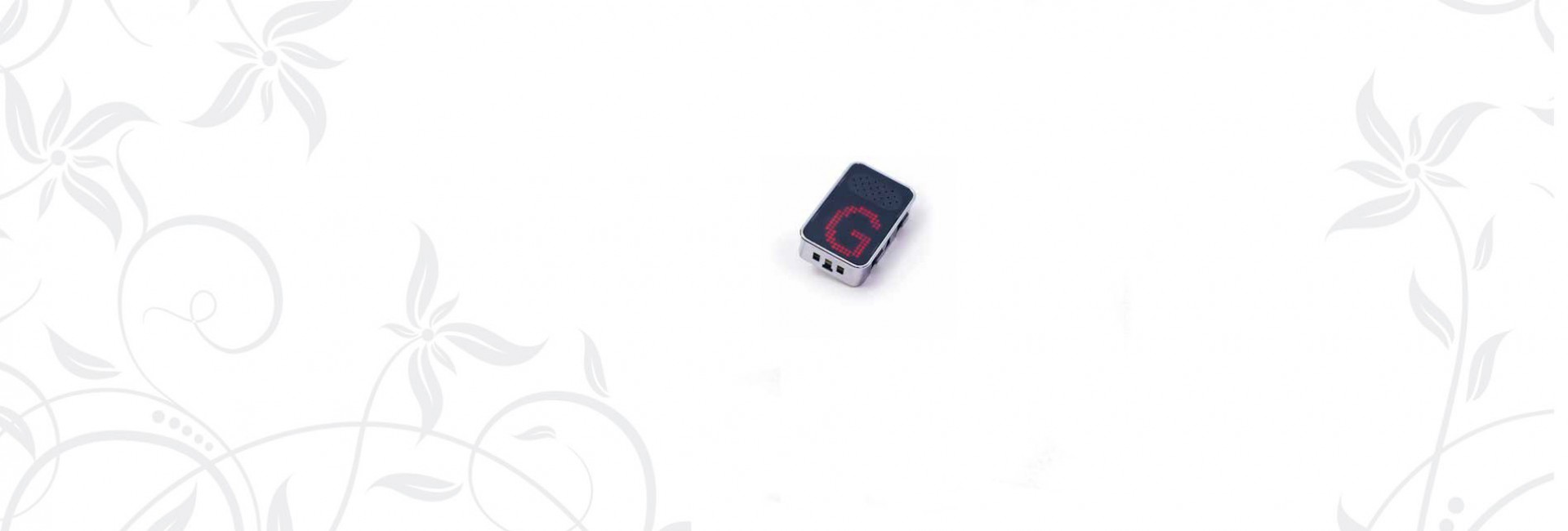

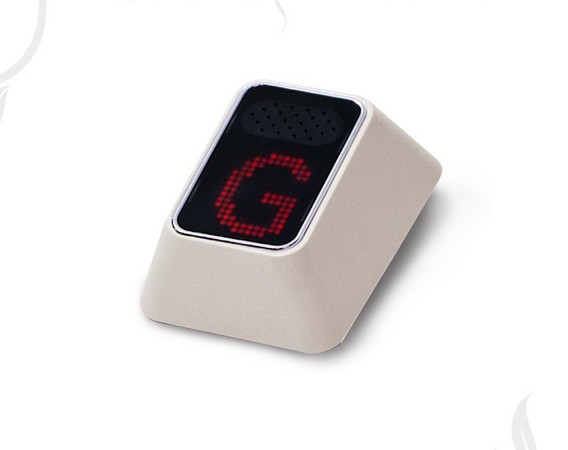

Digital display positioned at the door frame. It shows which floor the lift is on at the moment. The landing indicator can also show following system information:
• Warning if the lift batteries are low.
• A bell when the alarm button has been pressed.
• Number of starts and total run time since installation or since last reset.
• A weight symbol will appear if the lift is overloaded.
• If connected to the buildings fire alarm a "Fire" symbol will be shown when alarm is activated.

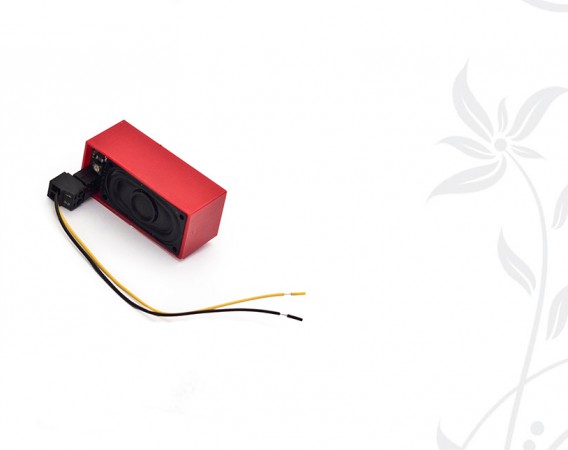

The arrival gong gives an audible signal (ding dong) when the platform arrives at each landing. It is placed in the door frame on each landing. Can be ordered as an option.

3-phase 400V / 5.2 A / 16 A slow
• Standard for all lifts (50 Hz)
• Frequency 50 or 60 Hz

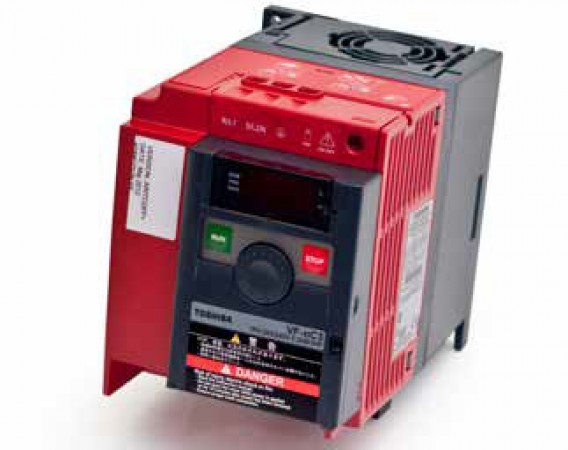

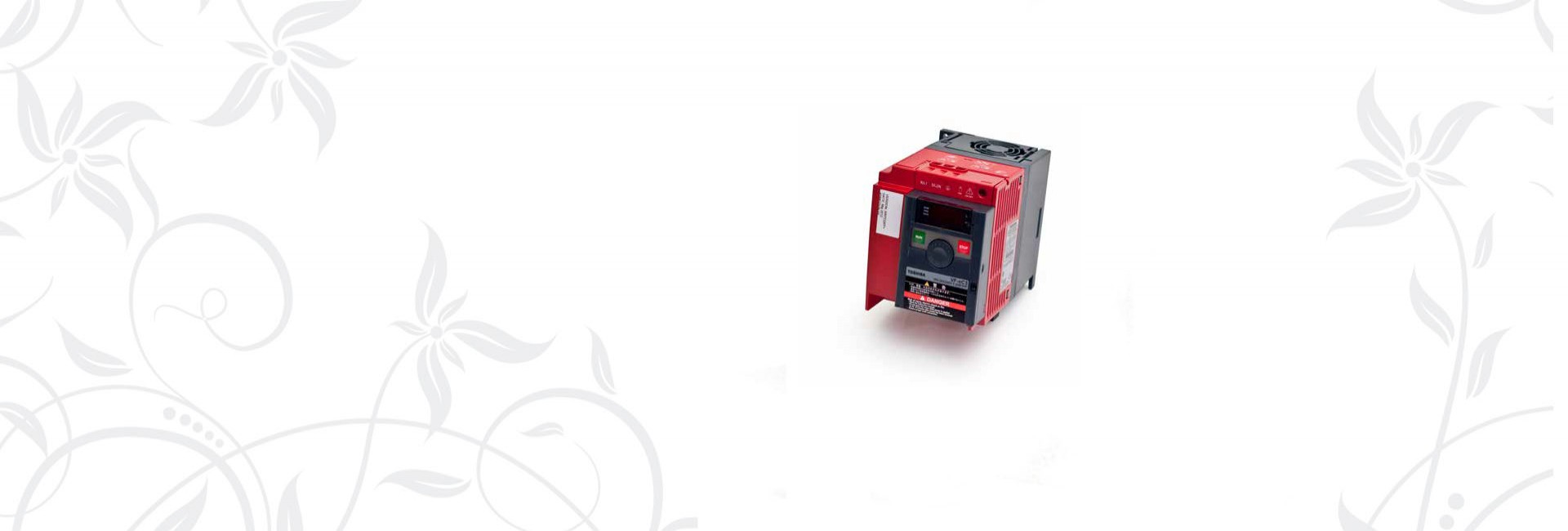

• Frequency converter, with build in soft start and stop
(option).
1-phase 230V / 9 A / 16 A slow
• Option when building doesn´t support 400V 3-phase
• Frequency converter, with built in soft start and stop
• Frequency 50 or 60 Hz
3-phase 230V / 9 A / 16 A slow
• Option
• Note that this is rarely used except for example in Norway
and Saudi Arabia
• Frequency 50 or 60 Hz

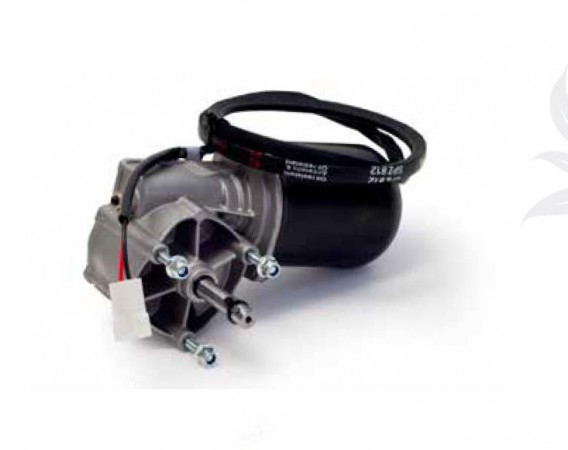

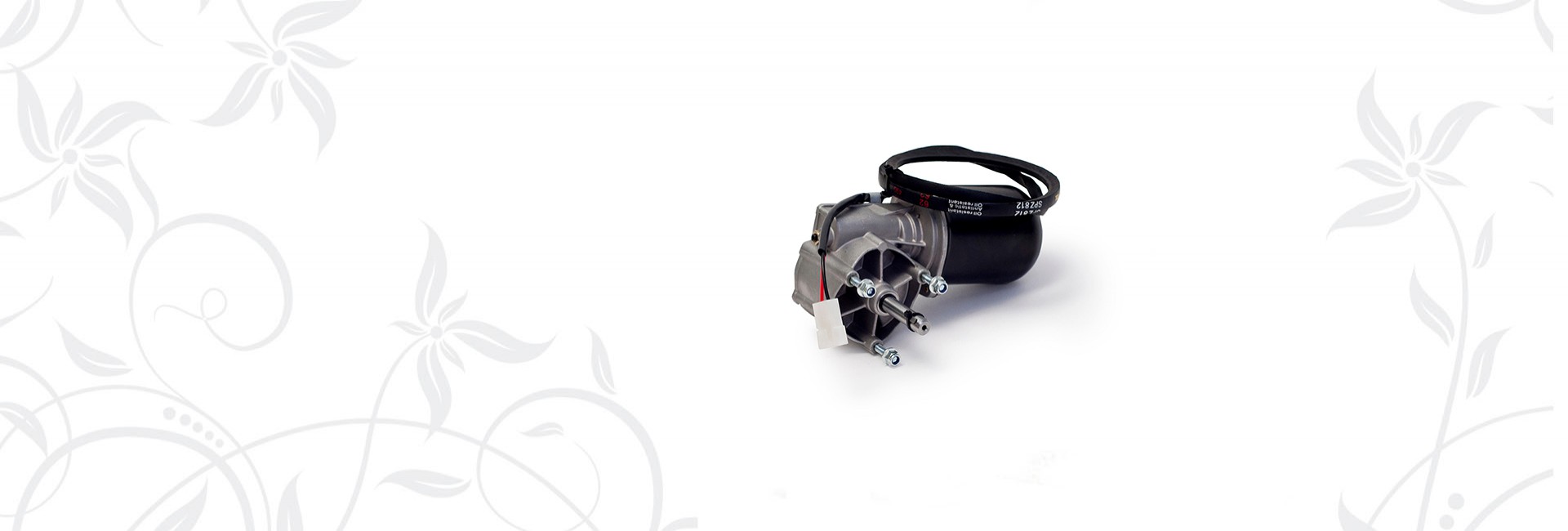

All Aritco lifts have battery operated emergency lowering as standard. You can lower yourself from inside the lift and get out by yourself when there is a power failure. Possible to run the lift to nearest level from the platform/cabin (possible to go down)
- Executed when pressing a platform/cabin button. Can also be run externally from the call button (hold to run) or service box.

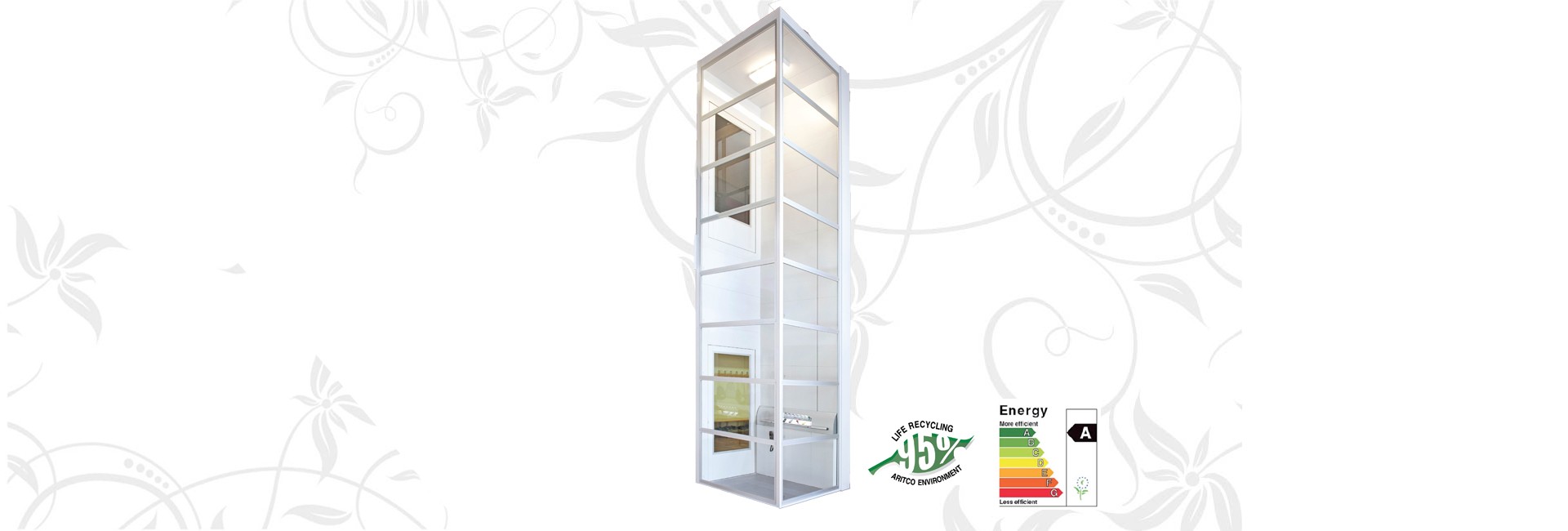

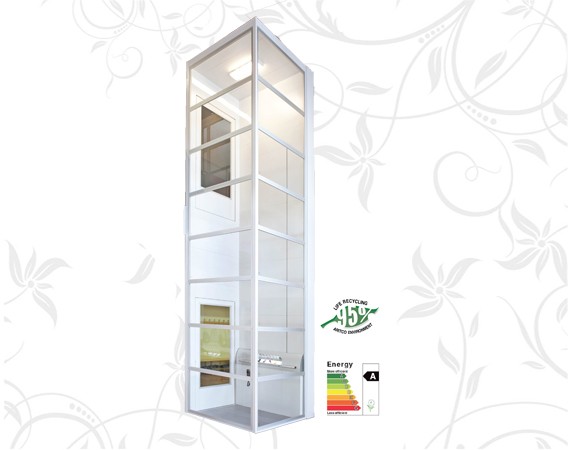

- Up to 13 m travel height with maximum of 6 stops
- Most efficient space utilization

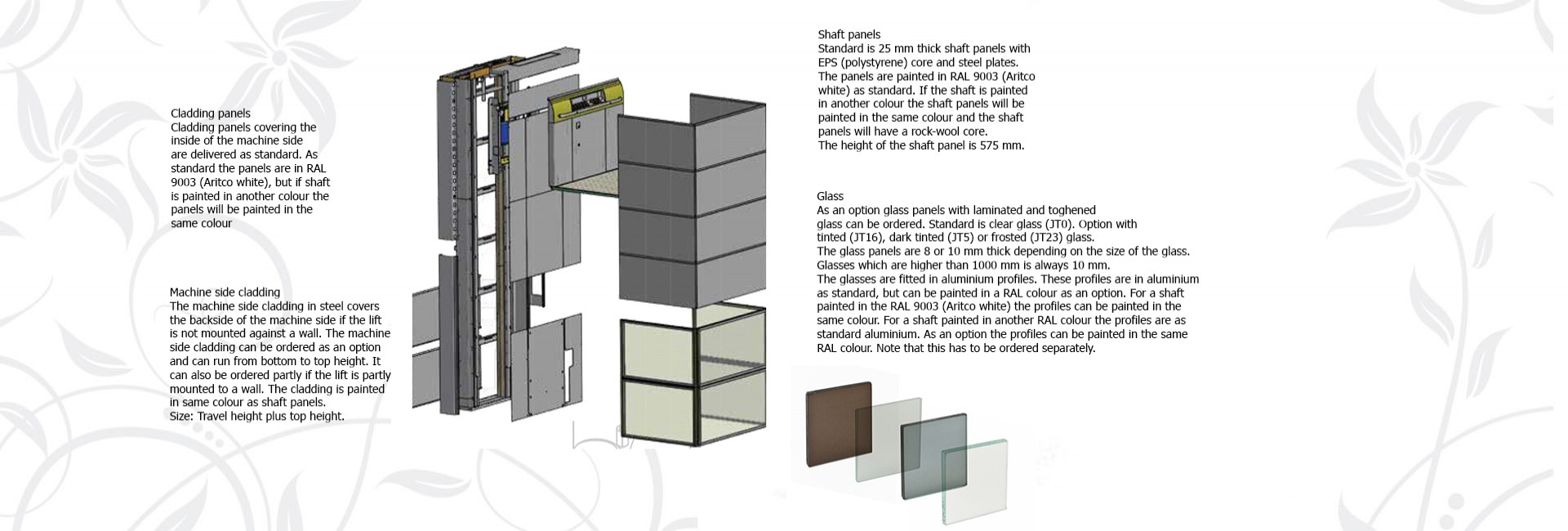

- Choices of panoramic glass or solid shaft panel on three sides
- Compliance with European safety standards and regulations

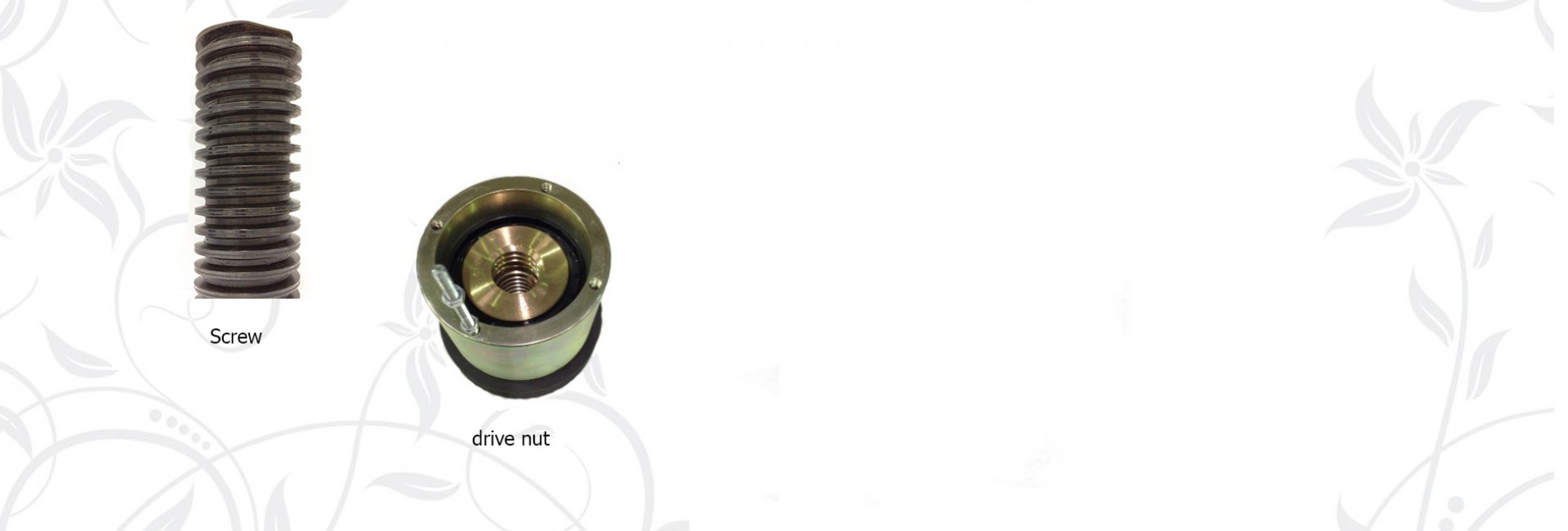

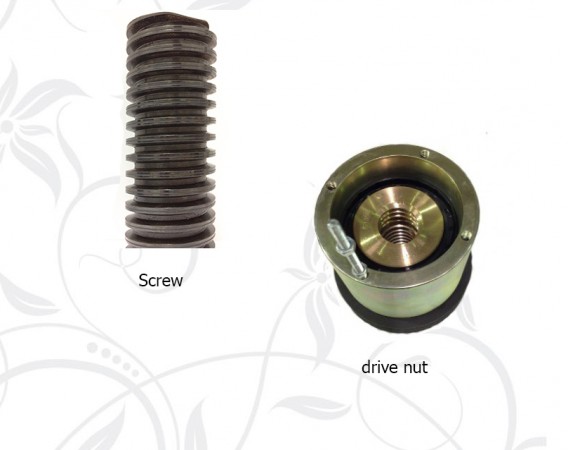

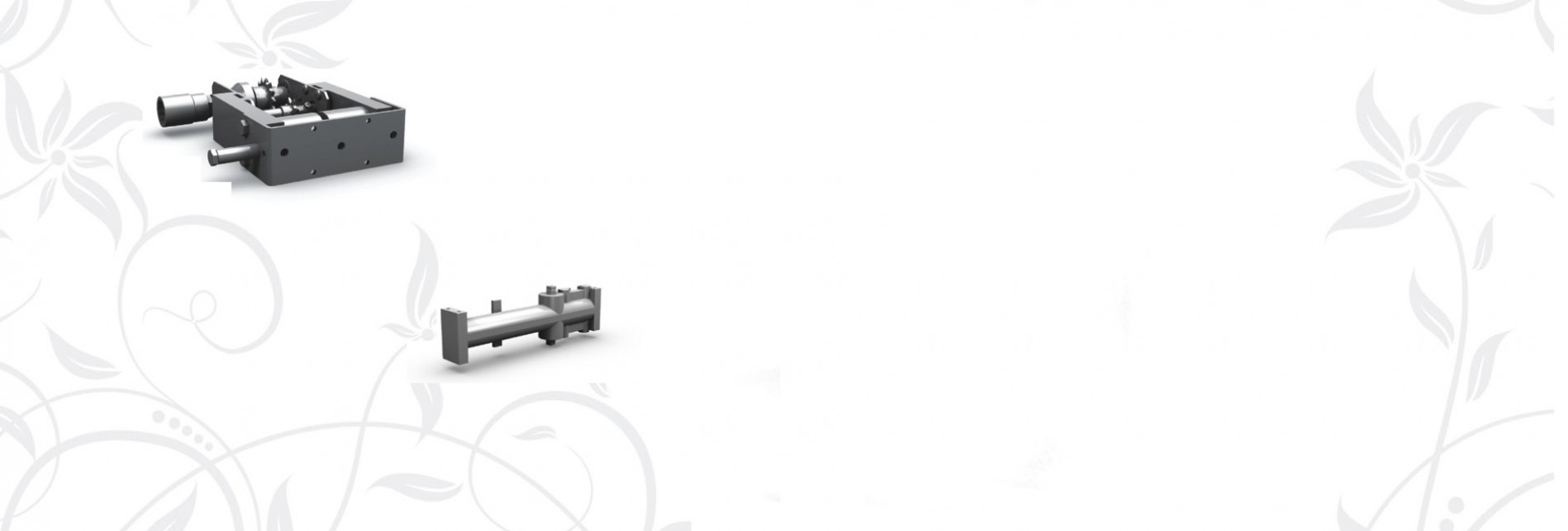

- Patented screw drive system to ensure owner's safety and comfort.
- Simple, compact and easy to install (less than 1 week) anywhere - indoor/outdoor
- Require little or no modification to existing building
- Up to 11 available platform sizes
- Only 21.5cm thick mechanical shaft
- Only 1500 watts to operate the lift, 10 watts when standby
- Built-in back up electrical and mechanical lowering systems in case of power failure
- No separate machine room or special built structure needed

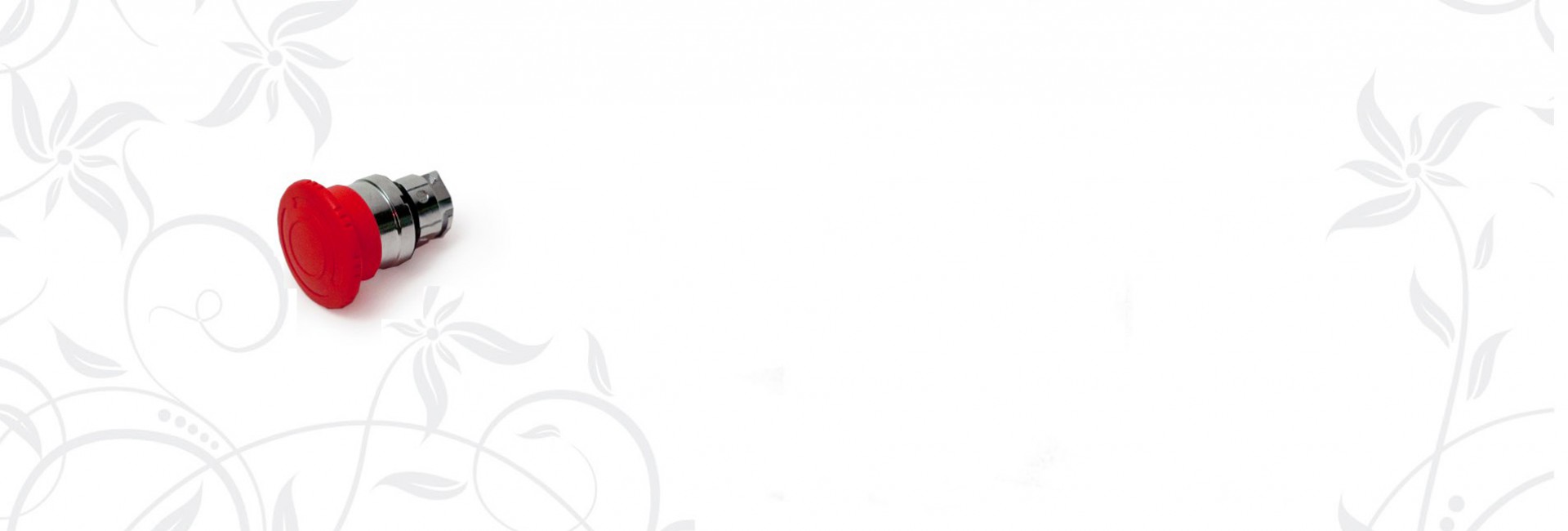

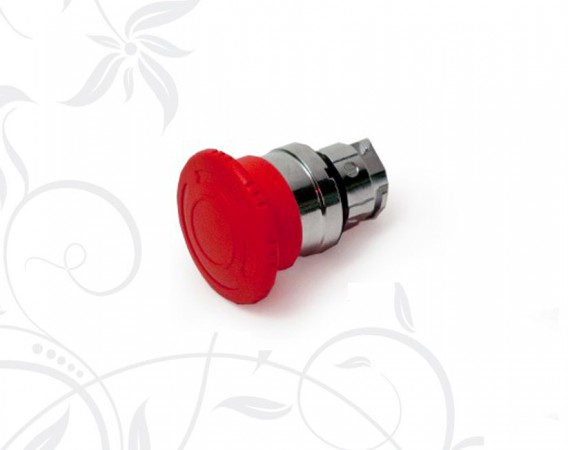

- Built-in 5 emergency stops system to ensure extra safety.
- No extra head room or pit required
