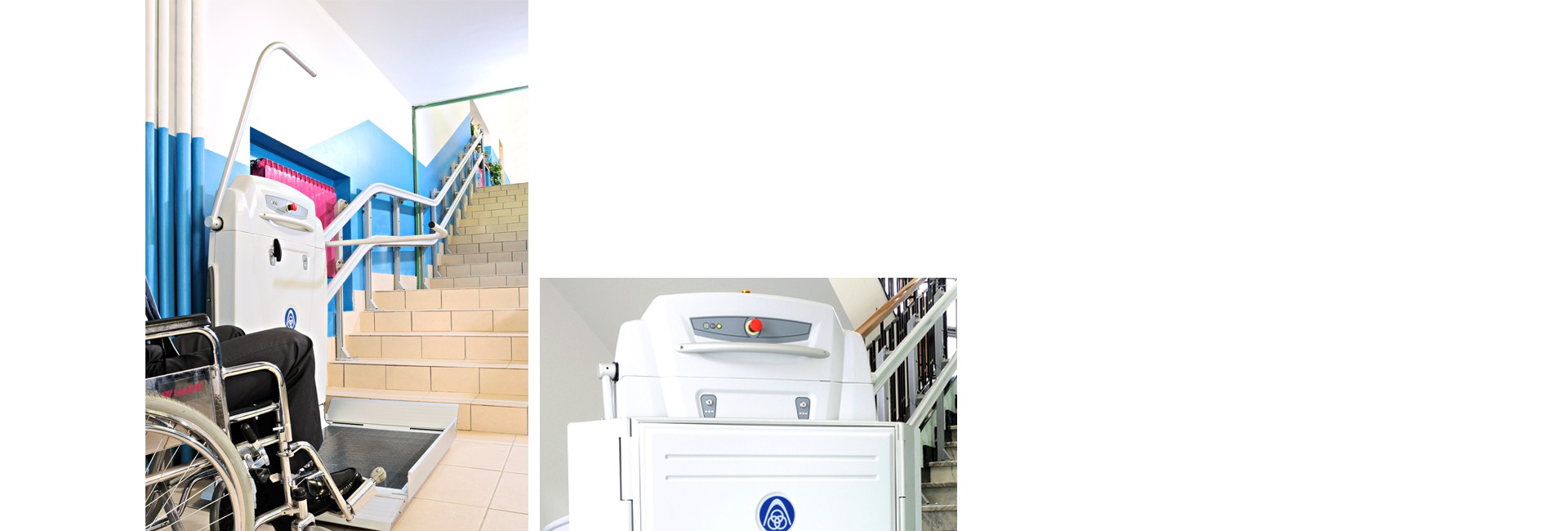

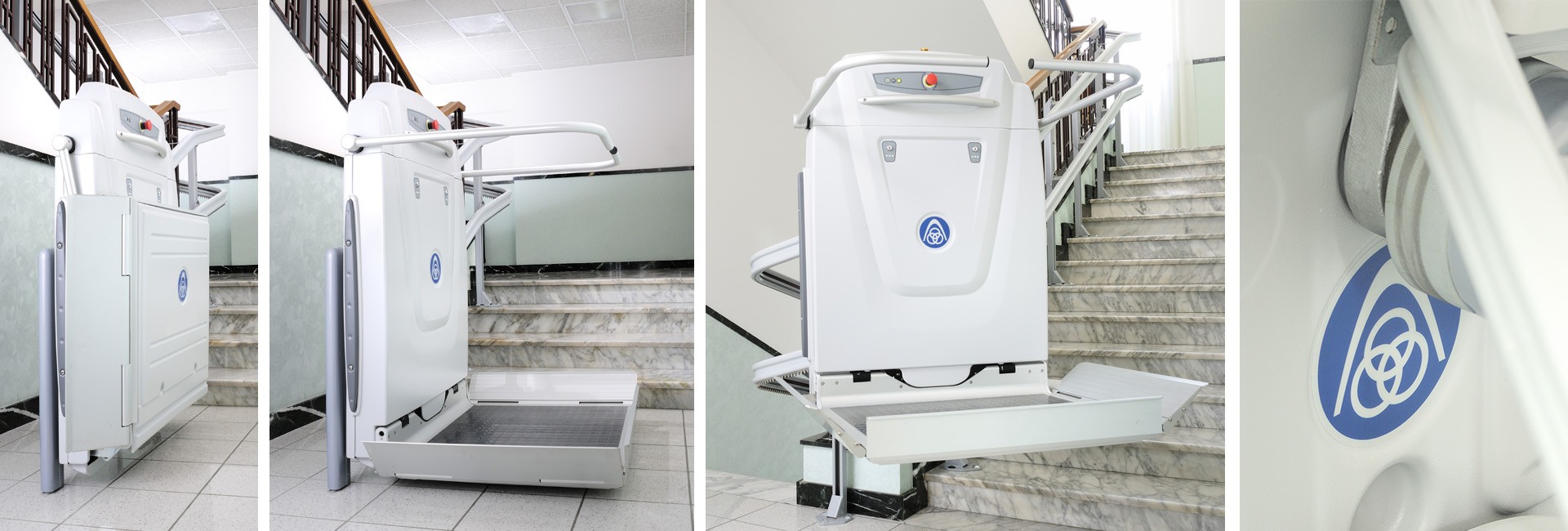

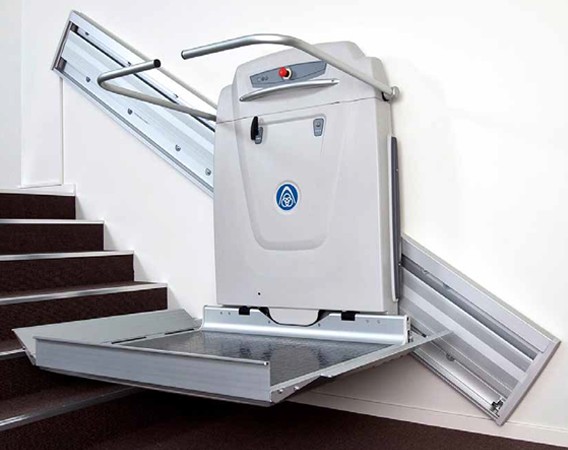

Supra Platform Lifts for straight and curved staircases
Our Inclined Platform Lifts are manufactured to meet the needs of
customers who demand the best comfort and quality. Advanced in design
and ergonomics, the Supra and Supra Linea are manufactured using
only quality components. The perfect solution to overcome architectural
obstacles and make your building accessible to all.

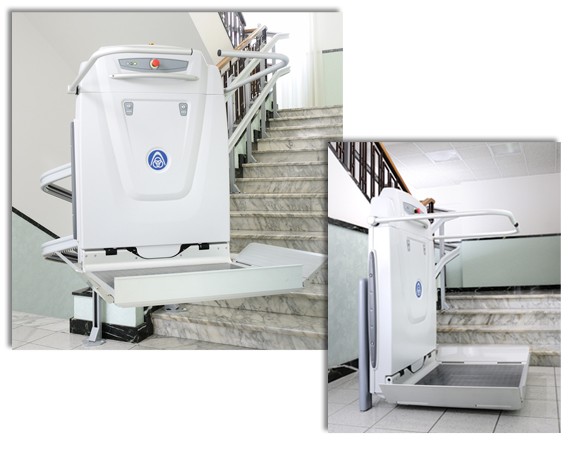

Supra is designed to overcome multiple curved stairs with variable gradient.
SUpra isan inclined platform lift, advance in design and ergonimic,
created to meet the needs of customers, requiring the best in
comfort and quality.

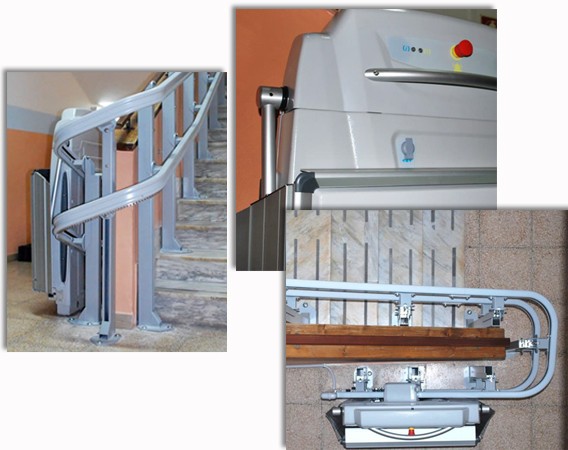

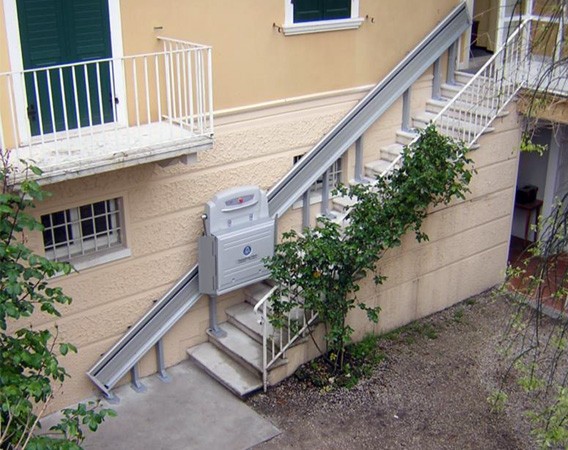

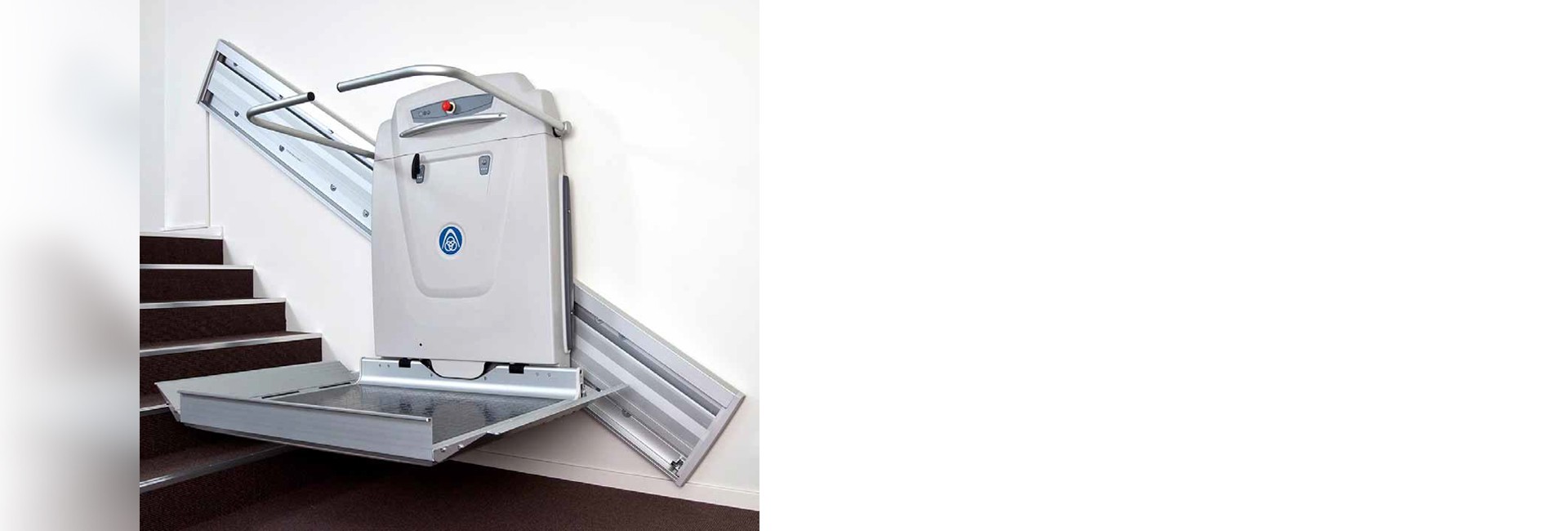

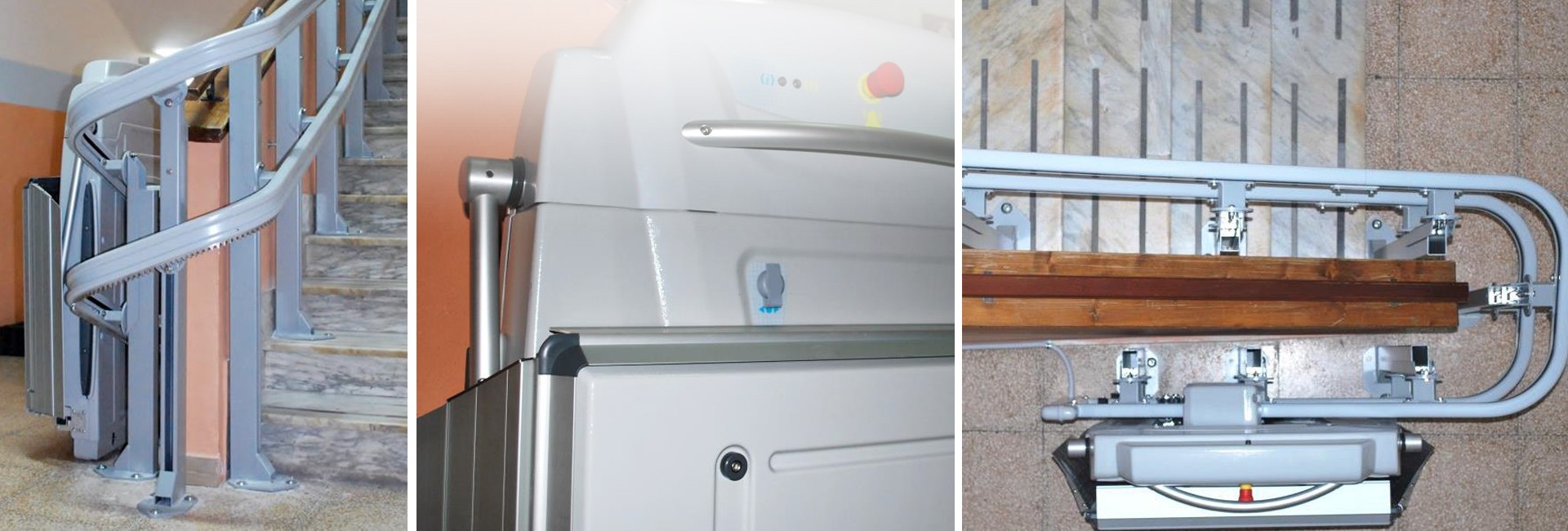

Because of its unique rail concept, Supra is suitable for installation in
virtually any type of staricase, staight and curved. Supra's double rail concept
is robust in design and double up as a handrail, making optimal use of space.
Its aluminium rails (RAL 9006) and accutare, detailed design make it
unique. Exceptional engineering offers utmost reliability and safety
under any conditions. Special anti-crush and anti-shearing devices stop
the machine in the event of danger. The "soft start and stop"
feature means that you will arrive gently at upper and lower landings.
customers who demand the best comfort and quality. Advanced in design
and ergonomics, the Supra and Supra Linea are manufactured using
only quality components. The perfect solution to overcome architectural
obstacles and make your building accessible to all.
Supra is designed to overcome multiple curved stairs with variable gradient.
SUpra isan inclined platform lift, advance in design and ergonimic,
created to meet the needs of customers, requiring the best in
comfort and quality.
Because of its unique rail concept, Supra is suitable for installation in
virtually any type of staricase, staight and curved. Supra's double rail concept
is robust in design and double up as a handrail, making optimal use of space.
Its aluminium rails (RAL 9006) and accutare, detailed design make it
unique. Exceptional engineering offers utmost reliability and safety
under any conditions. Special anti-crush and anti-shearing devices stop
the machine in the event of danger. The "soft start and stop"
feature means that you will arrive gently at upper and lower landings.

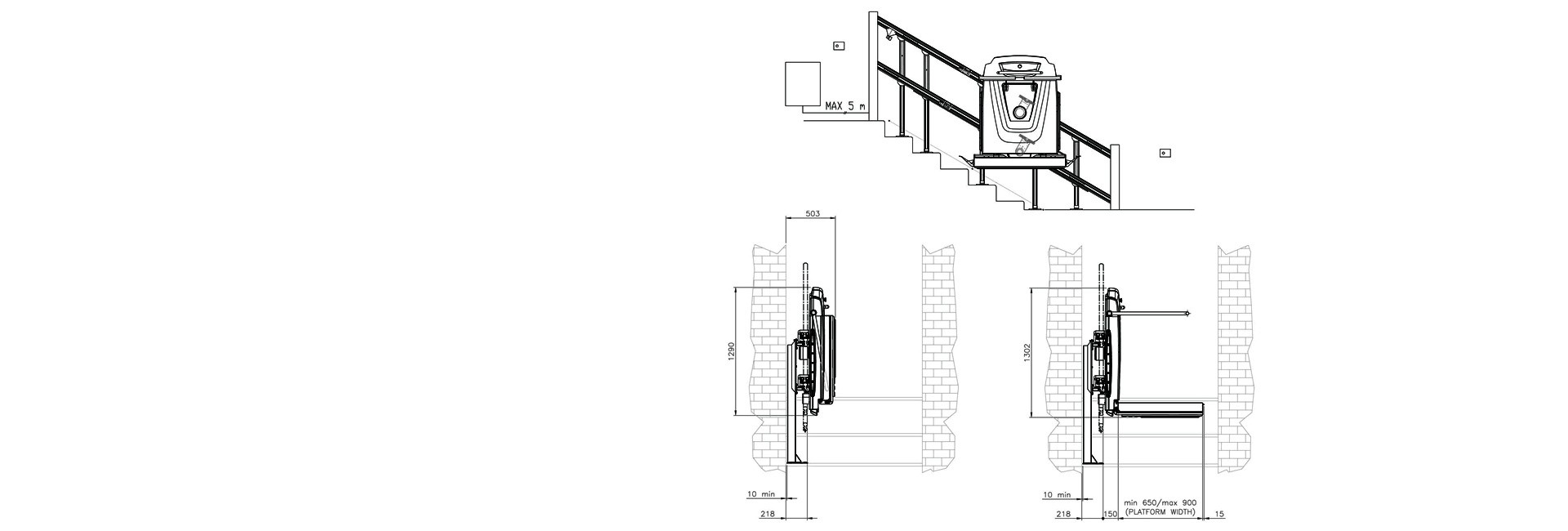

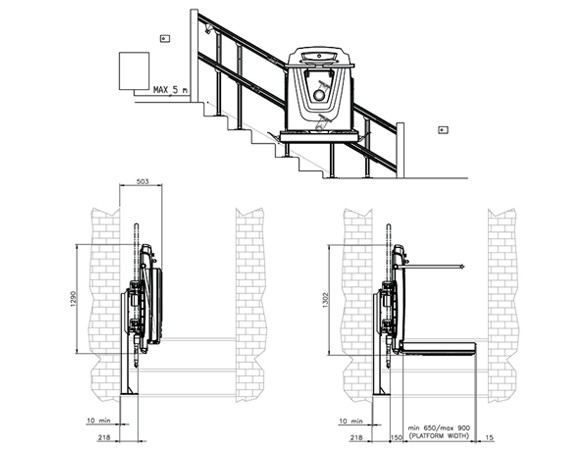

Supra Dimentions
Technical Specifications
Rated load : Maximum 300 kg
Speed : 0.07 m/s with 350 W motor, 0.13 m/s with 700 W motor
Power : 0.75 kw (max)
Power supply : 230 Voc 50/60 Hz
Standard platforms (LxW) : 860 mm x 650 mm, 860 mm x 710 mm,
1050 mm x 850 mm.
Maximum travel : 40 m
Max angle of incline : Up to 45
Norm compliance : D.M.236/89; EN 81-40; Machine Drive 2006/42/EC
Certifications : TUV CE
Options
*Customized paltform size
*Motorized opening/closing platform
*On wall remote control

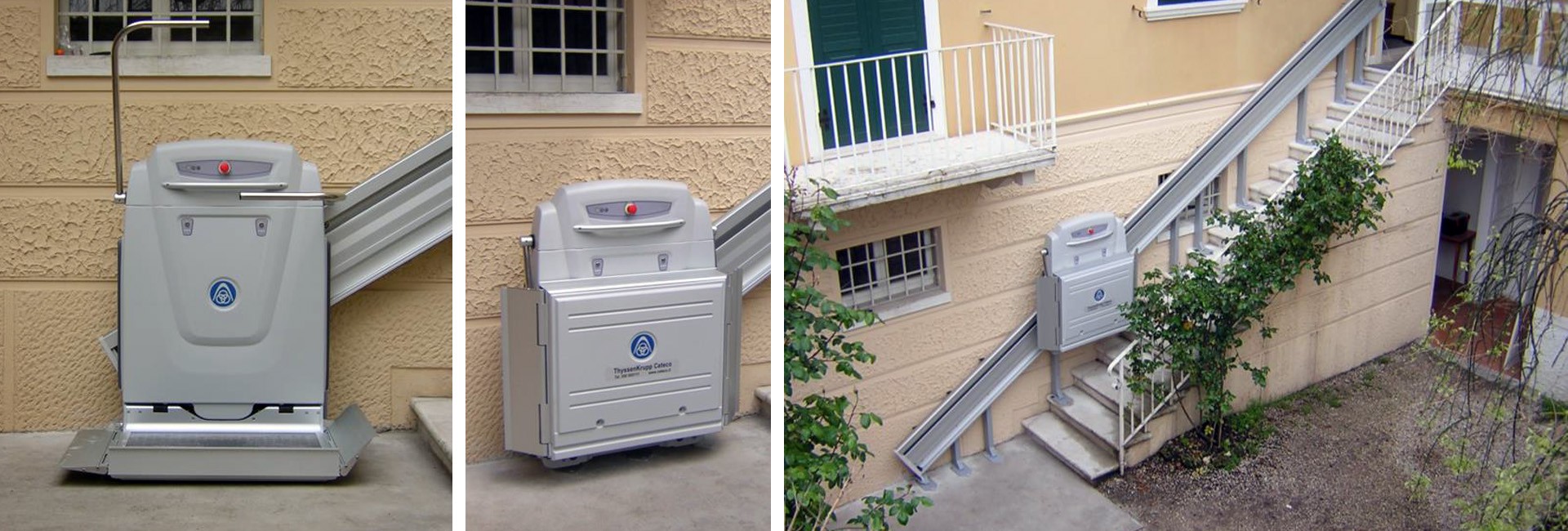

*Outdoor version
*High speed (0.14 m/x) version
*Anti-blackout device
*Radio remote control
*Mobile long side flap
*Foldable seat
*Cover cloth
Rated load : Maximum 300 kg
Speed : 0.07 m/s with 350 W motor, 0.13 m/s with 700 W motor
Power : 0.75 kw (max)
Power supply : 230 Voc 50/60 Hz
Standard platforms (LxW) : 860 mm x 650 mm, 860 mm x 710 mm,
1050 mm x 850 mm.
Maximum travel : 40 m
Max angle of incline : Up to 45
Norm compliance : D.M.236/89; EN 81-40; Machine Drive 2006/42/EC
Certifications : TUV CE
Options
*Customized paltform size
*Motorized opening/closing platform
*On wall remote control
*Outdoor version
*High speed (0.14 m/x) version
*Anti-blackout device
*Radio remote control
*Mobile long side flap
*Foldable seat
*Cover cloth
1. Ergonomically Designed
The Supra and Supra Linea have an advanced ergonomic
design which has been developed in consultation with
renowned consumer associations. This has enabled us to
develop one of the most comfortable and safest inclined
platform lifts on the market. The easy-to-use joystick or
optional push buttons allow the lift to move up and down
the stairs safely and with minimal effort for the user.
2. Compact and Discreet
Due to their slim profile the Supra and Supra Linea take
up little space on the staircase when not in use. The
choice of parking options and platform sizes makes them
ideal for busy buildings where space is at a premium.
3. Safety
Our customers’ safety is of paramount importance to us.
Both the Supra and Supra Linea are certified to European
Machinery Directive 2006/42/EC. They are fitted with
antiimpact and anti-shearing safety devices which bring
the lift to an immediate stop if they encounter an
obstruction on the staircase. An overload device can
be added to conform to European norm EN 81-40.
The Supra and Supra Linea have an advanced ergonomic
design which has been developed in consultation with
renowned consumer associations. This has enabled us to
develop one of the most comfortable and safest inclined
platform lifts on the market. The easy-to-use joystick or
optional push buttons allow the lift to move up and down
the stairs safely and with minimal effort for the user.
2. Compact and Discreet
Due to their slim profile the Supra and Supra Linea take
up little space on the staircase when not in use. The
choice of parking options and platform sizes makes them
ideal for busy buildings where space is at a premium.
3. Safety
Our customers’ safety is of paramount importance to us.
Both the Supra and Supra Linea are certified to European
Machinery Directive 2006/42/EC. They are fitted with
antiimpact and anti-shearing safety devices which bring
the lift to an immediate stop if they encounter an
obstruction on the staircase. An overload device can
be added to conform to European norm EN 81-40.
Features

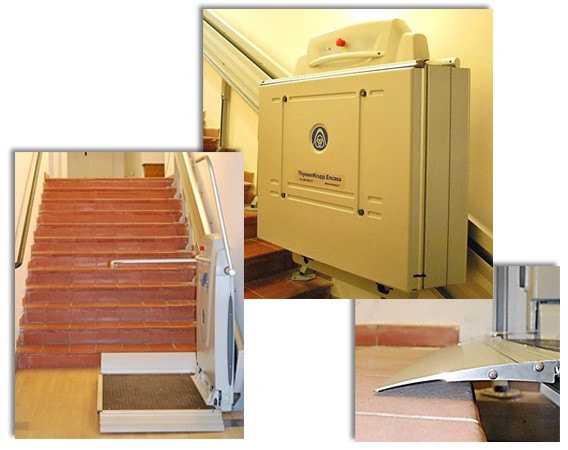

When the platform lift arrives at either the top or bottom landing the
leading access ramp opens automatically, allowing the user to get on or
get off the platform with minimal effort. The access ramps are raised again
before travel, giving a sense of security to the user.
Automatic Safety Bars
The Supra and Supra Linea have automatic safety
bars that surround the user during travel. As the
lift arrives at either the top or bottom landing the
leading safety bar is raised allowing the user to get
on or get off the lift. This is lowered again before
travel, giving a sense of security to the user

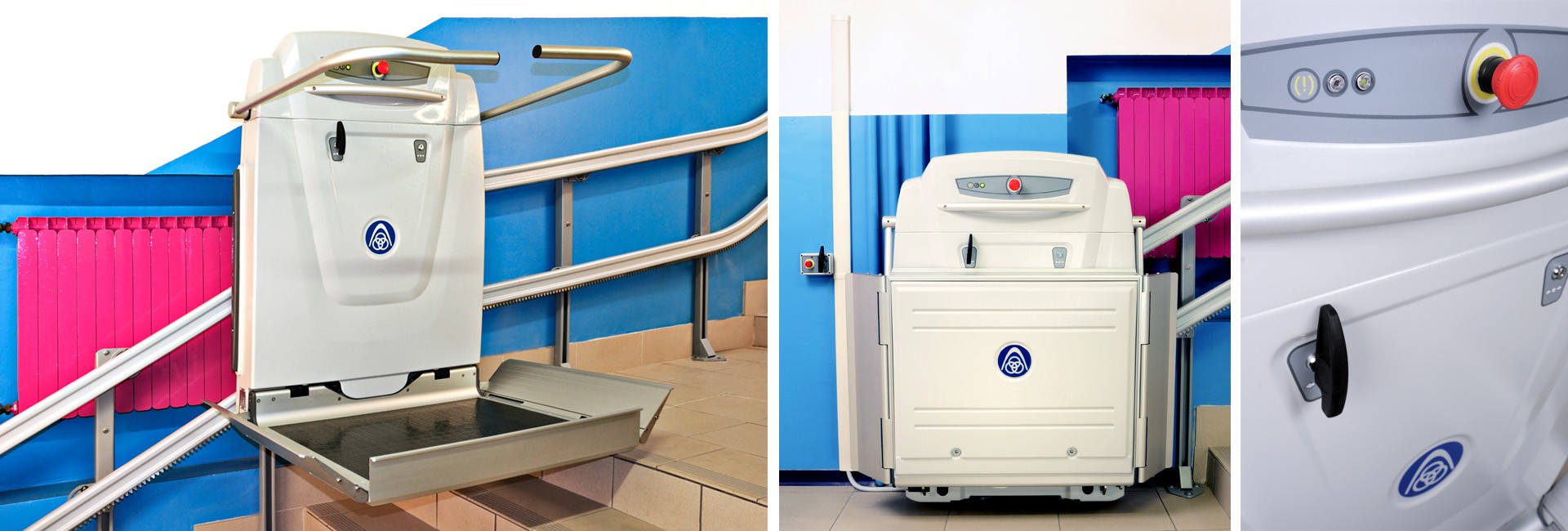

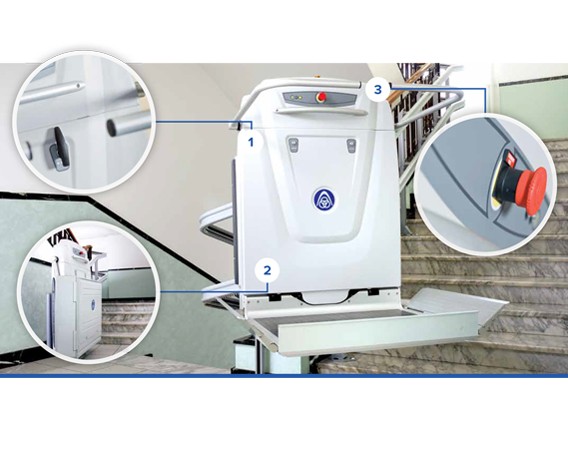

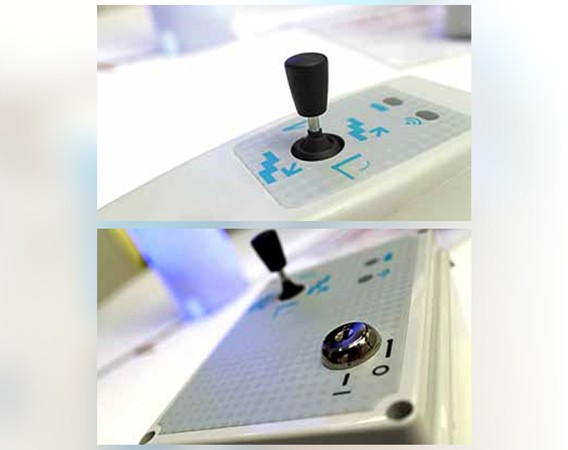

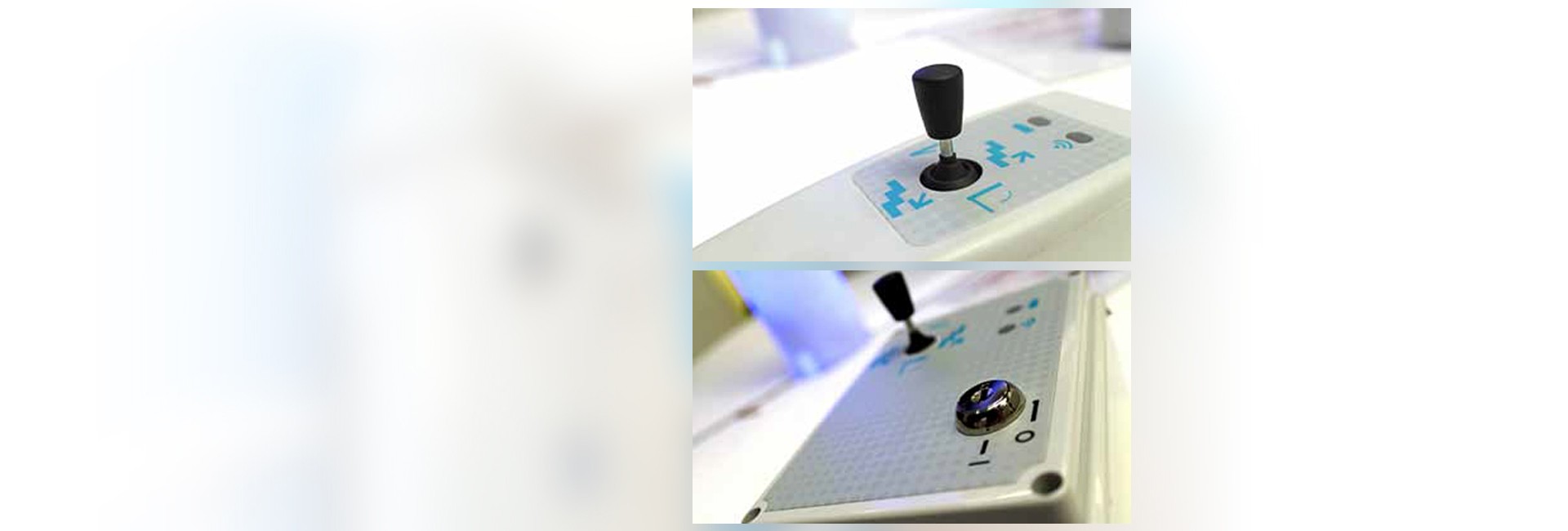

On-board Controls with Ergonomic Keys
The on-board controls make it simple to operate
the Supra and Supra Linea. The ergonomic keys
and buttons are shaped so that they can be
operated with minimal effort while their design
remains aesthetically pleasing.
leading access ramp opens automatically, allowing the user to get on or
get off the platform with minimal effort. The access ramps are raised again
before travel, giving a sense of security to the user.
Automatic Safety Bars
The Supra and Supra Linea have automatic safety
bars that surround the user during travel. As the
lift arrives at either the top or bottom landing the
leading safety bar is raised allowing the user to get
on or get off the lift. This is lowered again before
travel, giving a sense of security to the user
On-board Controls with Ergonomic Keys
The on-board controls make it simple to operate
the Supra and Supra Linea. The ergonomic keys
and buttons are shaped so that they can be
operated with minimal effort while their design
remains aesthetically pleasing.

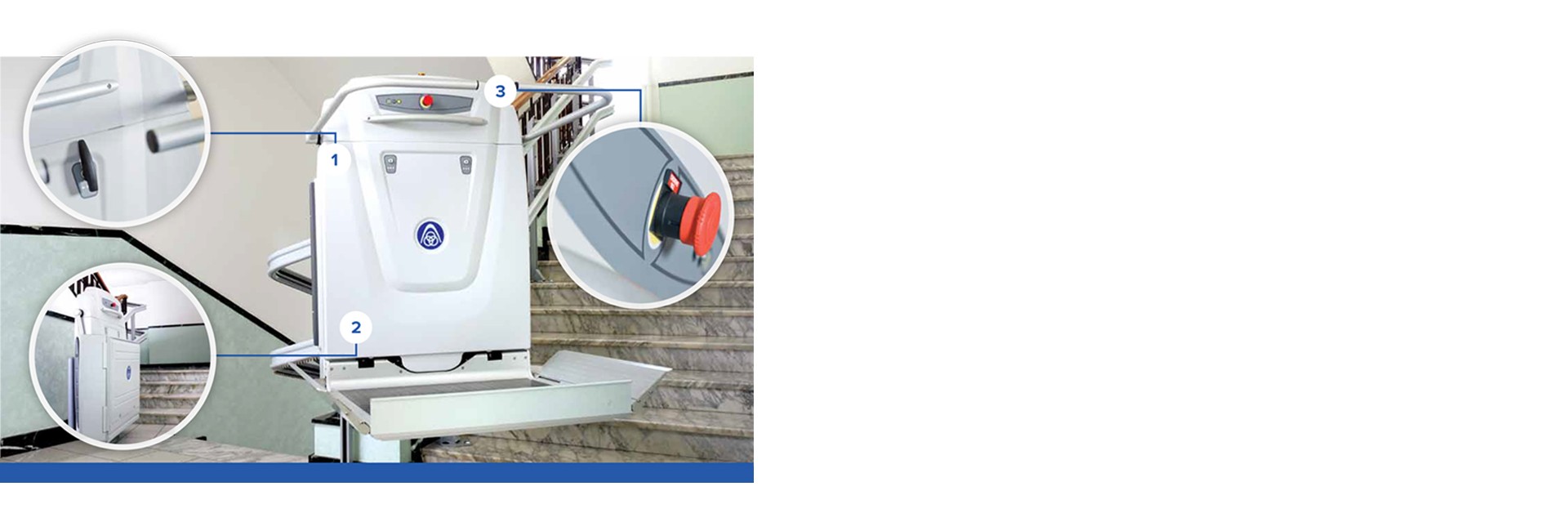

Anti-Impact / Anti-Shearing
The lift is designed so that it comes to an automatic
stop if the platform detects an obstruction on
the staircase. It has anti-impact / anti-shearing
devices on the sides of the machine body and the
underside of the platform.
Anti-Slip Safety Floor Covering
The Supra and Supra Linea are designed to be
hardwearing and durable. They are fitted with an
anti-slip safety floor covering to prevent slipping
and to reduce any cosmetic damage from
frequent use.
The lift is designed so that it comes to an automatic
stop if the platform detects an obstruction on
the staircase. It has anti-impact / anti-shearing
devices on the sides of the machine body and the
underside of the platform.
Anti-Slip Safety Floor Covering
The Supra and Supra Linea are designed to be
hardwearing and durable. They are fitted with an
anti-slip safety floor covering to prevent slipping
and to reduce any cosmetic damage from
frequent use.

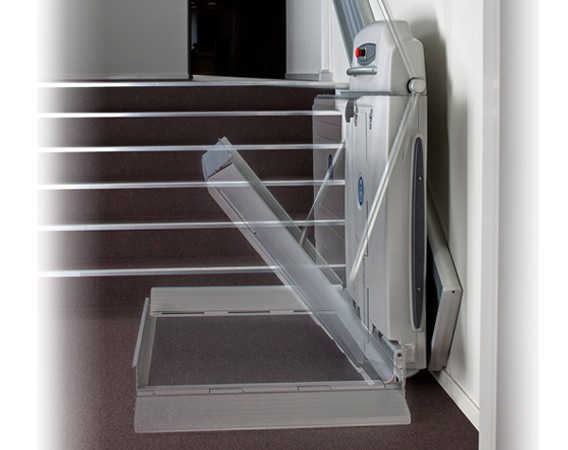

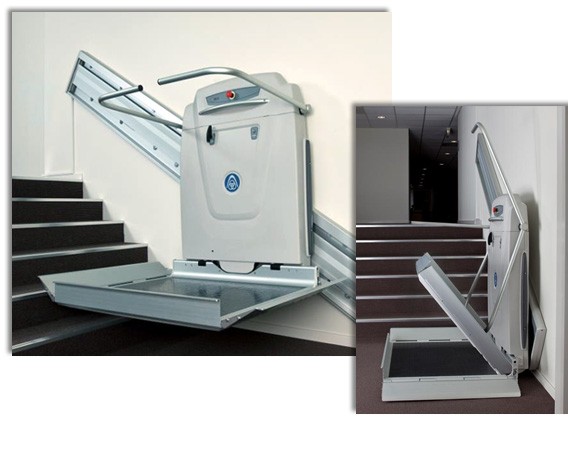

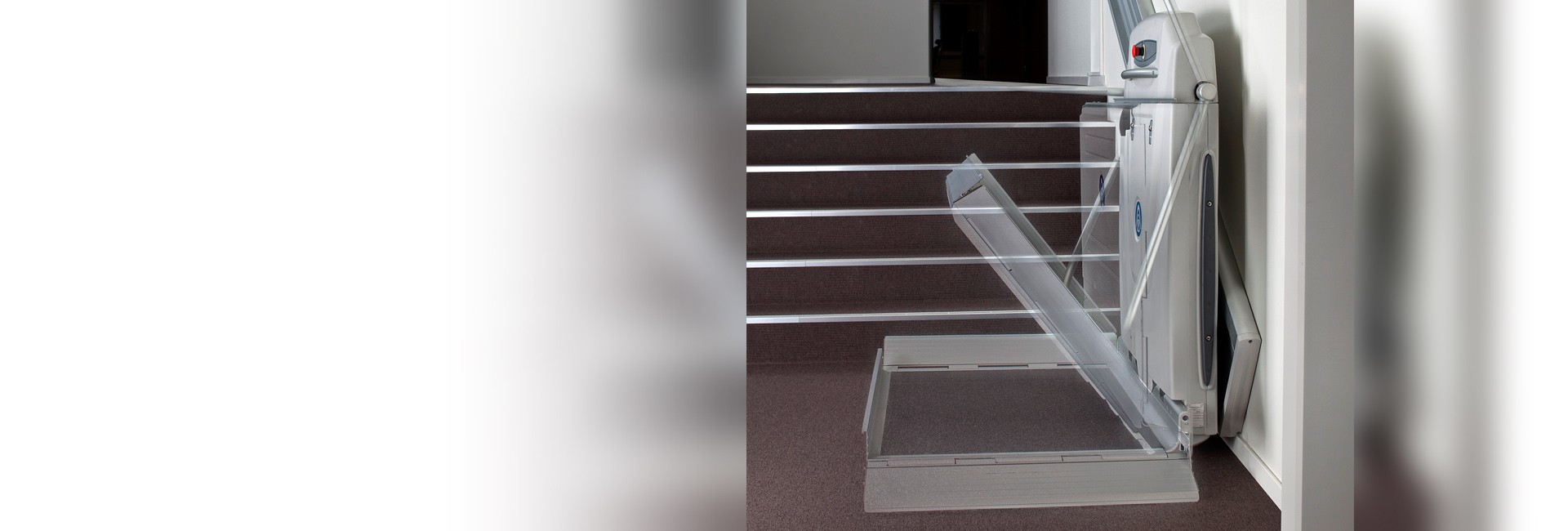

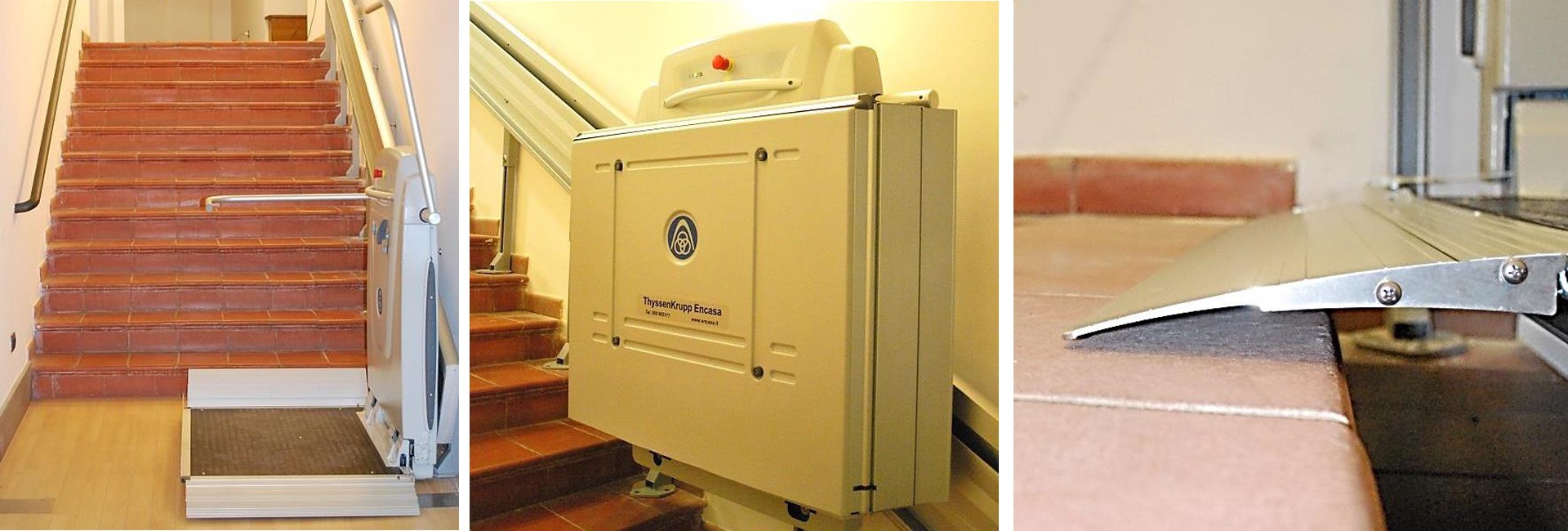

When the lift is not in use
it can be conveniently
folded away, taking only
310 mm of space offering
the ideal solution for any
additional staircase users.
it can be conveniently
folded away, taking only
310 mm of space offering
the ideal solution for any
additional staircase users.
TAILORED TO YOUR NEEDS
When you choose the Supra or Supra Linea, you ensure the best solution
for your accessibility requirements. With a range of options available the Supra
and Supra Linea can be tailor-made to suit almost any situation.
Accessibility
With fully automatic folding platforms, a wide choice of platform sizes and intermediate stops, the Supra
and Supra Linea are suitable for installation into almost every type of building.

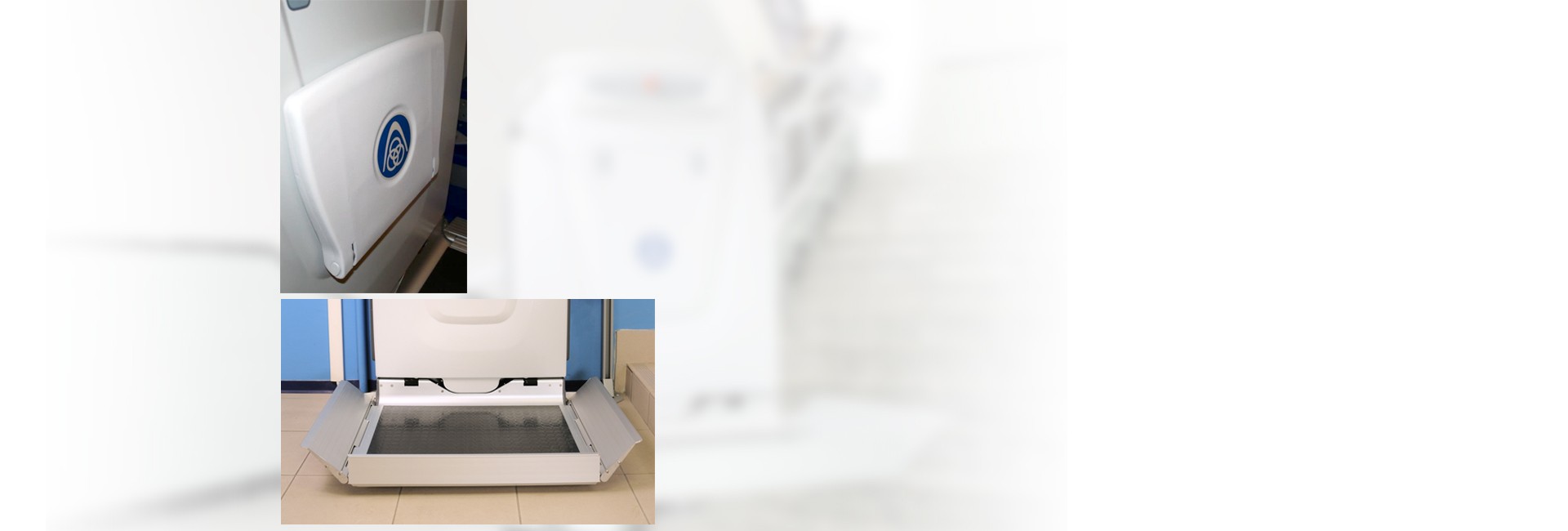

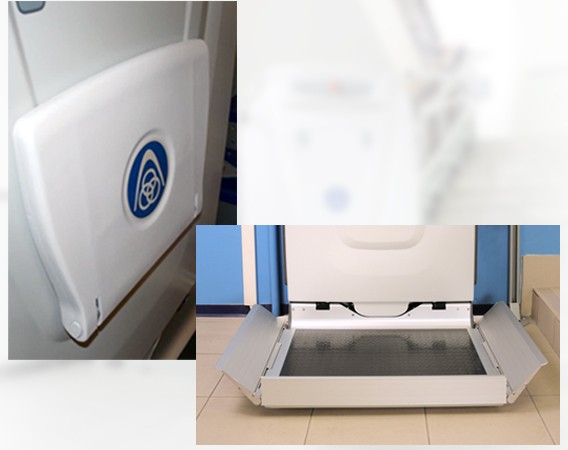

Folding Seat
Available for non-wheelchair users who wish to sit
on the platform during travel.
90° Access Ramp
Available for any platform size it facilitates getting
on/off the platform when there is reduced space at
the bottom landing.
for your accessibility requirements. With a range of options available the Supra
and Supra Linea can be tailor-made to suit almost any situation.
Accessibility
With fully automatic folding platforms, a wide choice of platform sizes and intermediate stops, the Supra
and Supra Linea are suitable for installation into almost every type of building.
Folding Seat
Available for non-wheelchair users who wish to sit
on the platform during travel.
90° Access Ramp
Available for any platform size it facilitates getting
on/off the platform when there is reduced space at
the bottom landing.
Control Station
Radio Remote Control
The remote can be held by the user during travel or
can be kept in possession of a designated operator
and used as an attendant control.
Call Stations with Joystick or Buttons
The call stations are placed at each end of the
staircase. In public places we recommend the call
stations with either a joystick (shown here) or with
buttons. They are normally fitted to the wall but
when there is no wall nearby a call bracket (Supra
Linea) and a call stanchion (Supra) can be supplied.
Radio Remote Control
The remote can be held by the user during travel or
can be kept in possession of a designated operator
and used as an attendant control.
Call Stations with Joystick or Buttons
The call stations are placed at each end of the
staircase. In public places we recommend the call
stations with either a joystick (shown here) or with
buttons. They are normally fitted to the wall but
when there is no wall nearby a call bracket (Supra
Linea) and a call stanchion (Supra) can be supplied.
Backup Functionality
Battery Backup - Supra
The battery backup enables the Supra to function in the
event of a power cut.
Auxiliary Power System - Supra Linea
The auxiliary power system allows the lift to function in
case of power cuts. When choosing the auxiliary power system,
the increased speed version is included.
Battery Backup - Supra
The battery backup enables the Supra to function in the
event of a power cut.
Auxiliary Power System - Supra Linea
The auxiliary power system allows the lift to function in
case of power cuts. When choosing the auxiliary power system,
the increased speed version is included.

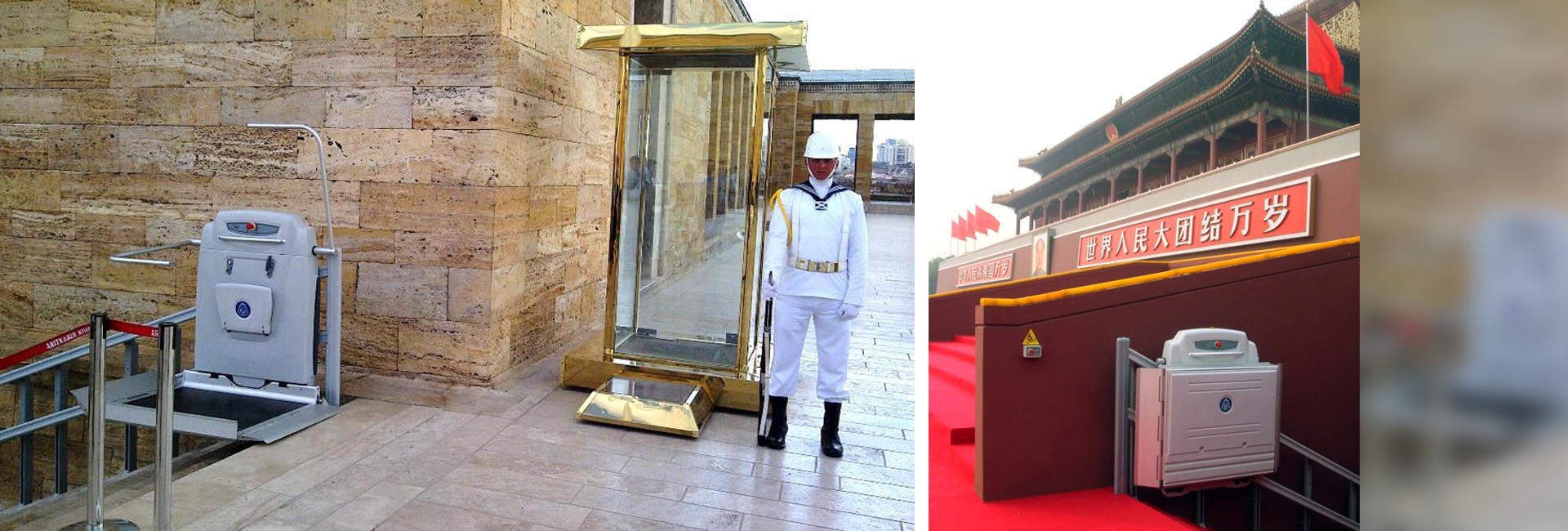

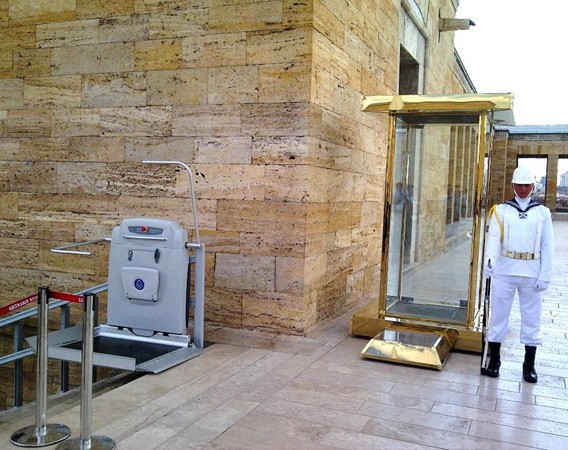

Reference Installation
